Allied Components

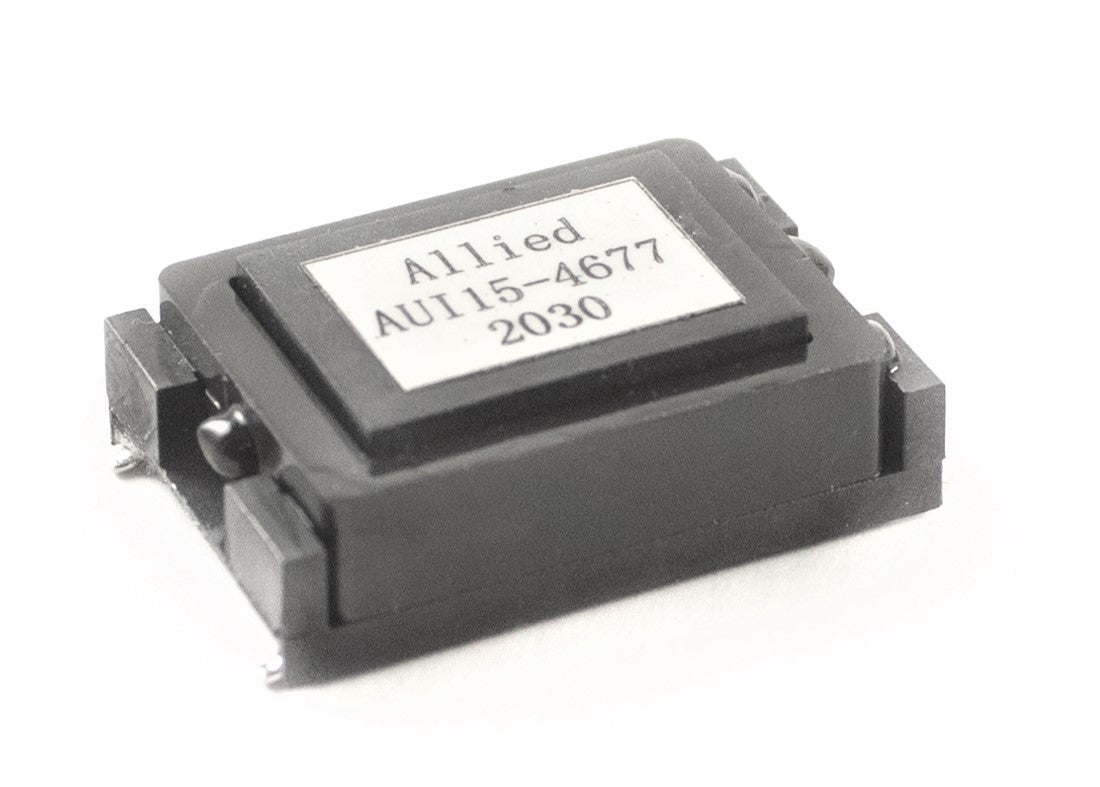

UI15 Designs / AUI15-4677

$0.00
  • UI15 Core SMD Package
  • Extended Operating Temperature Range: -40ºC to +125ºC
  • Unit weight: 6.0g/pc
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +125°C
  • Length: 1.000 / 25.4
  • Width: .650 / 16.5
  • Height: .334 / 8.5
  • Primary Inductance: 240µH
  • Turns Ratio: 1 : 73.636
  • Geometry: UI15
  • Mounting Type: Surface Mount
    • Download Datasheet
