Allied Components

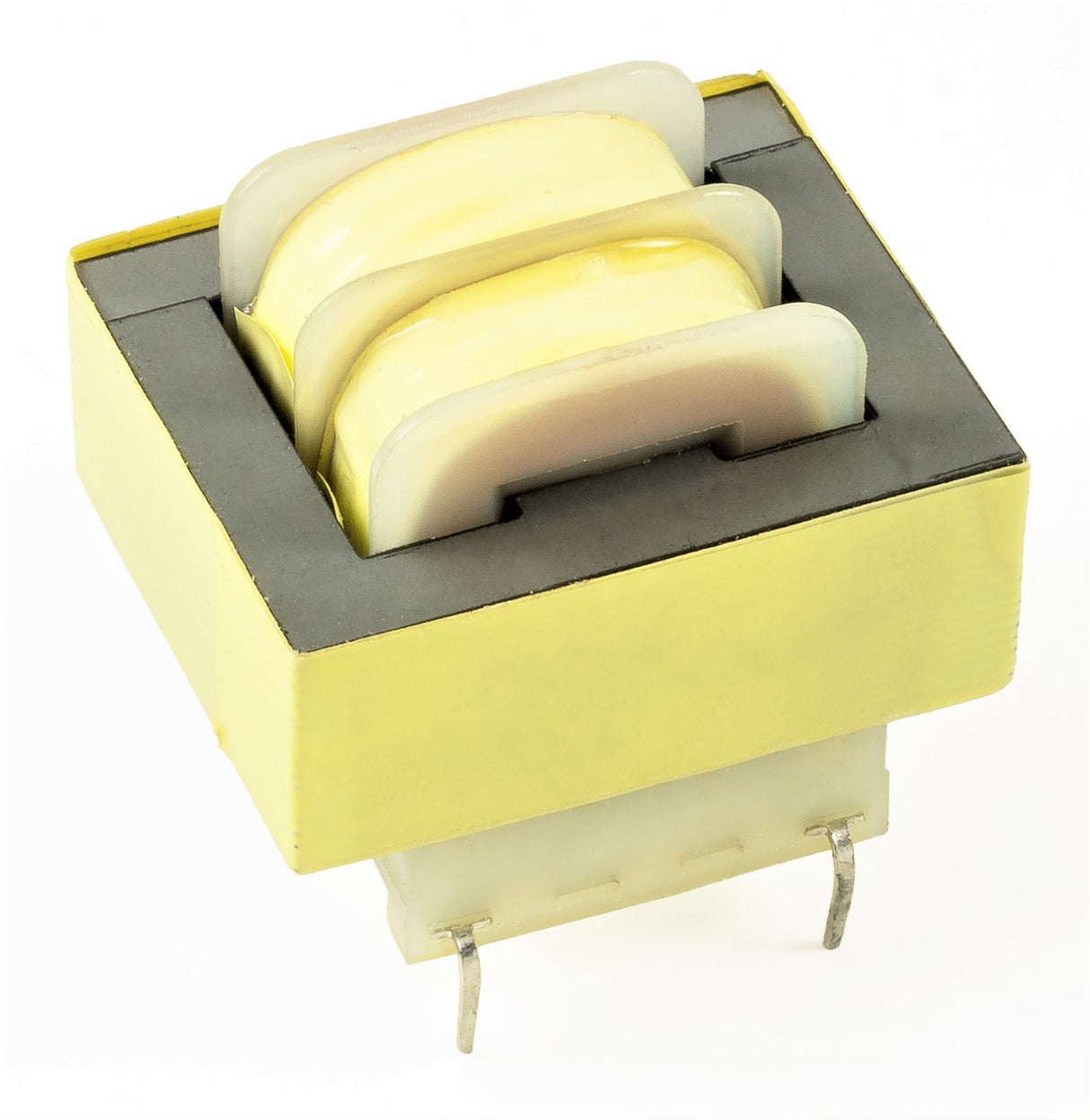

EI35 Horizontal Mount / AEI35-3855

$0.00
  • EI35 Core Design
  • 8 Pin Through Hole, Horizontal Mount
  • Three Flange Bobbin Design
  • Primary Voltage: 24.0 VAC @ 50/60Hz
  • Secondary Voltage: Series 24.0VAC @ 100mA, Parallel: 12.0V @ 200mA
  • Power Rating: 2.4VA
  • Made with UL Approved Materials
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -20°C to +85C
  • Length: 1.457 / 37.008
  • Width: 1.260 / 32.004
  • Primary Voltage: 24VAC
  • Geometry: EI35
  • Mounting Type: Through-Hole
  • Turns Ratio: 1 : 0.618 : 0.618
  • Height: 1.24 / 31.496
    • Download Datasheet
