Allied Components

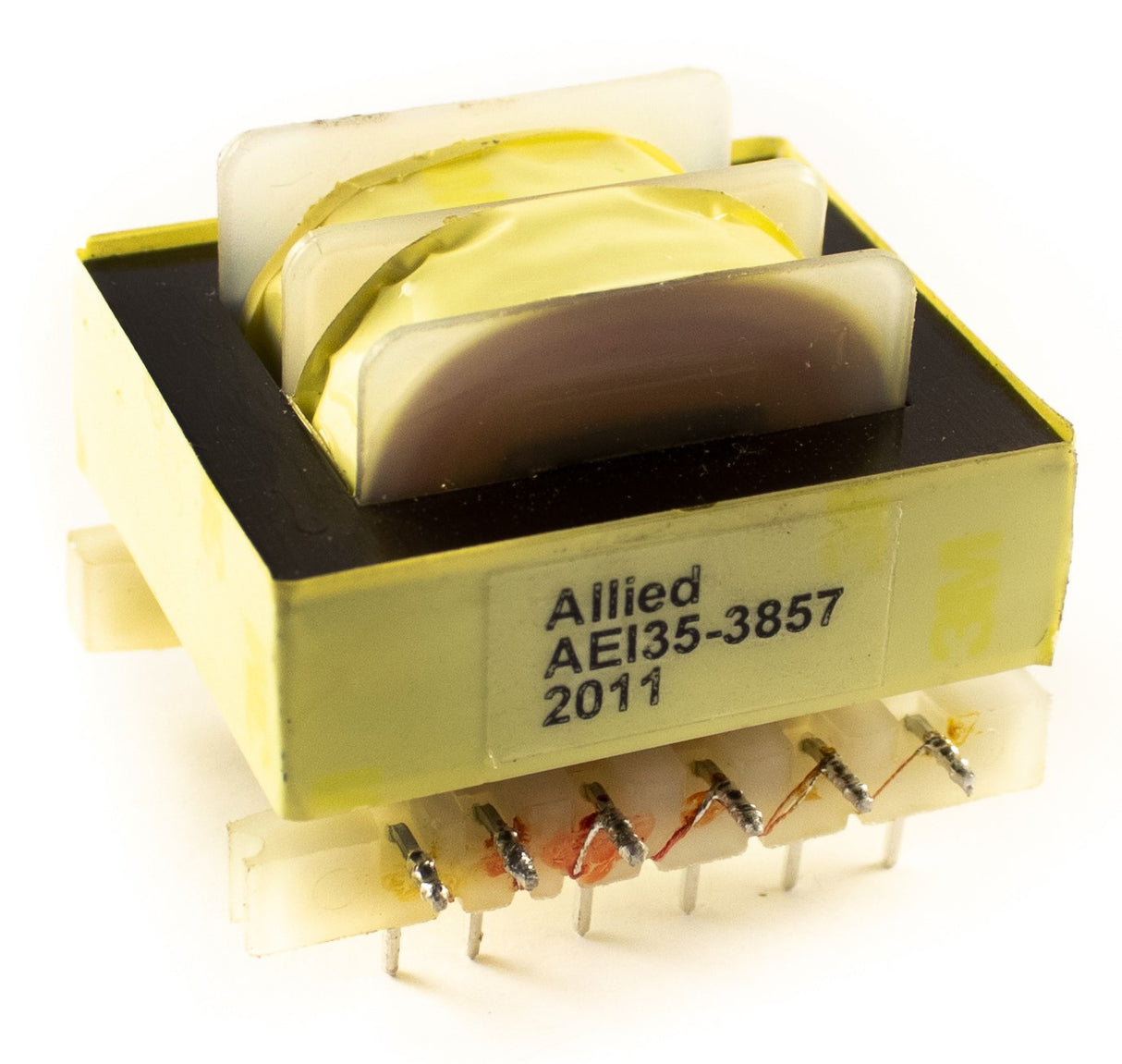

EI35 Horizontal Mount / AEI35-3857

$0.00
  • EI35 Core Design
  • 12 Pin Through Hole, Horizontal Mount
  • Primary Taps: 120V, 208V, 240V, 277V, 347V
  • Secondary: 24.0VAC 5% @ 50mA
  • 60Hz Operation
  • HiPot: 2500VAC (Pri-Sec)
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: 130°C
  • Length: 1.556 / 39.522
  • Width: 1.378 / 35.001
  • Primary Voltage Multi Tap: 120~347VAC
  • Geometry: EI35
  • Mounting Type: Through-Hole
  • Turns Ratio: 3.79 : 3.06 : 1.05 : 1.22 : 2.31 : 1
  • Height: 1.142 / 29.007
    • Download Datasheet
