Allied Components

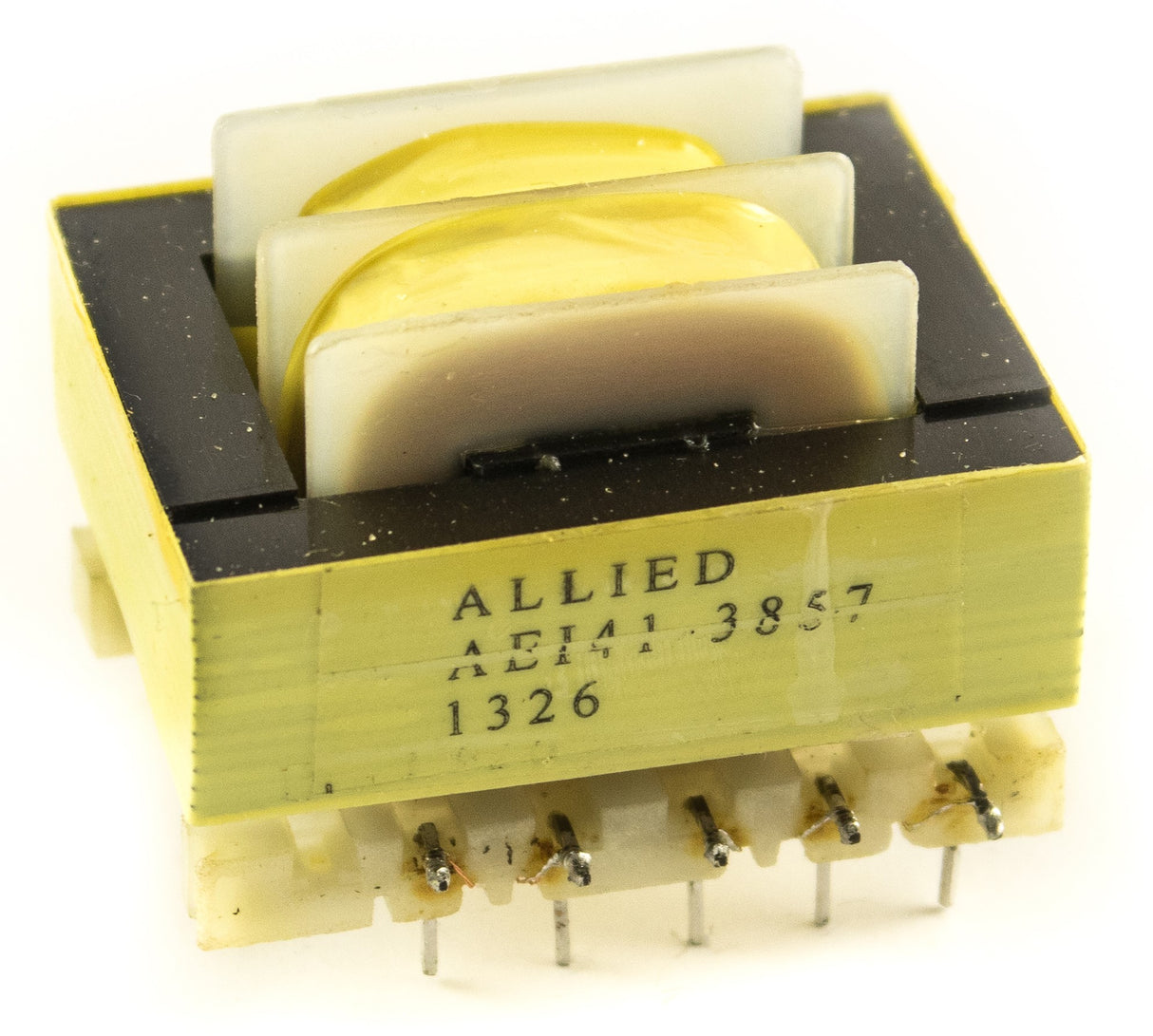

EI41 Horizontal Mount / AEI41-3857

$0.00
  • EI41 Core Design
  • 12 Pin Through Hole, Horizontal Mount
  • Primary Taps: 120V, 208V, 277V, 347V
  • Secondary: 24.0VAC 5% @ 91mA
  • 60Hz Operation
  • HiPot: 2500VAC (Pri-Sec)
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: 130°C
  • Length: 1.693 / 43.002
  • Width: 1.496 / 37.998
  • Primary Voltage Multi Tap: 110~347VAC
  • Geometry: EI41
  • Mounting Type: Through-Hole
  • Turns Ratio: 3.98 : 3.68 : 2.54 : 2.58 : 1
  • Height: 1.181 / 29.997
    • Download Datasheet
