Allied Components

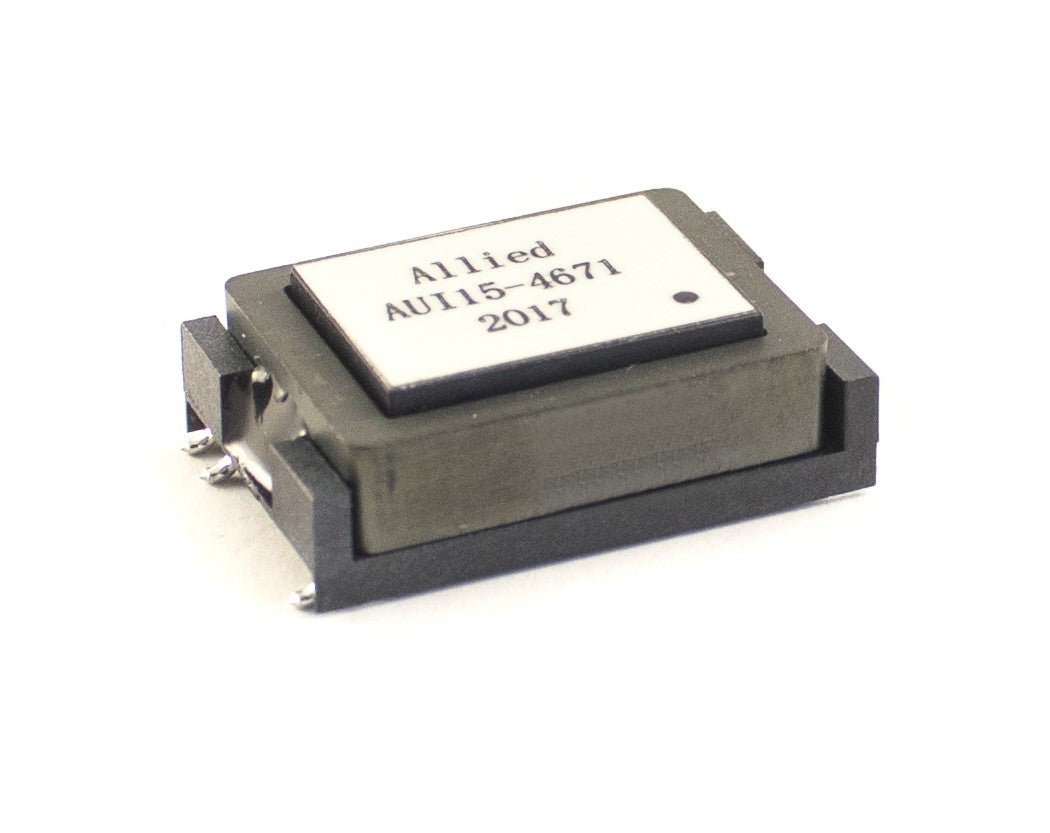

UI15 Designs / AUI15-4671

$0.00
  • UI15 Core SMD Package
  • Extended Operating Temperature: -40°C to +125°C
  • 3500VAC Hi Pot
  • Unit weight: 6.1g/pc
Part Number

Specifications
  • Pins: 10
  • Op Temp Range: -40°C to +125°C
  • Length: .965 / 24.5
  • Width: .610 / 15.5
  • Height: .315 / 8.0
  • Primary Inductance: 160µH
  • Turns Ratio: 1 : 100
  • Geometry: UI15
  • Mounting Type: Surface Mount
    • Download Datasheet
