Allied Components

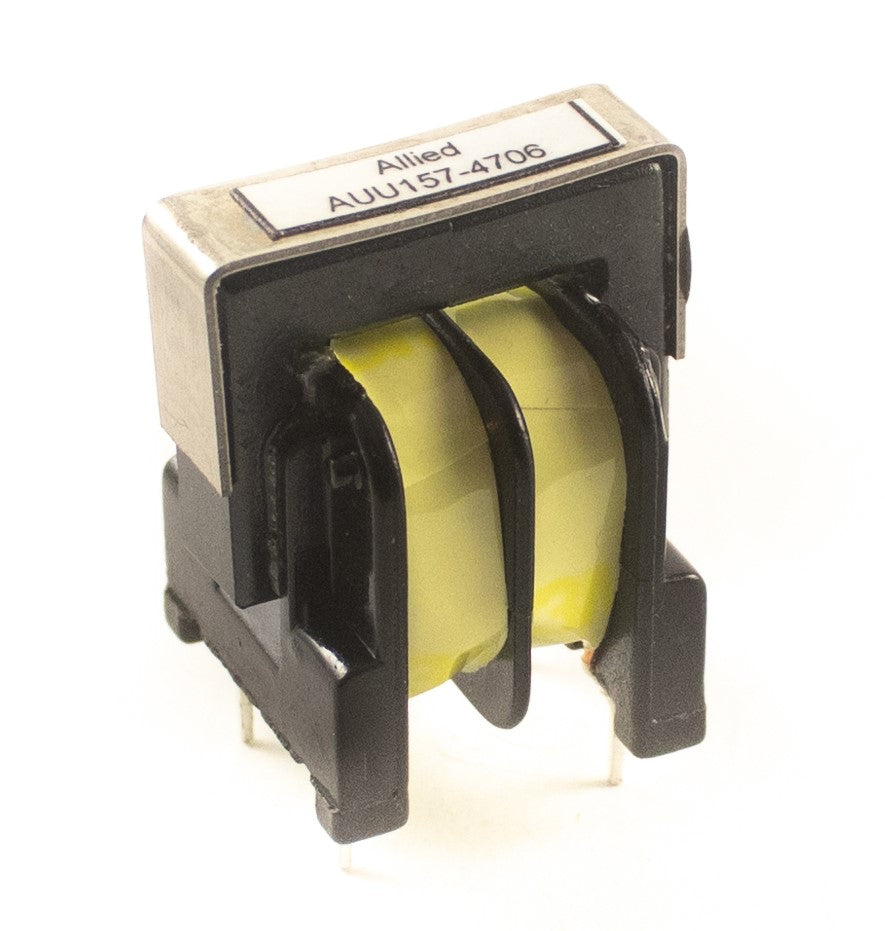

Through Hole / UU Type / AUU157-4706

$0.00
  • Vertical Mount
  • UU Core Design
  • Operating Temperature Range: -55°C to +105°C
Part Number

Specifications
  • Inductance: 10mH
  • Rated Current: 1.5A
  • DCR Max: 220mΩ
  • Op Temp Range: -55°C to +105°C
  • Length: .905 / 23.0
  • Width: .768 / 19.5
  • Height: 1.083 / 27.5
  • Turns Ratio: 01 : 01
    • Download Datasheet
