Allied Components

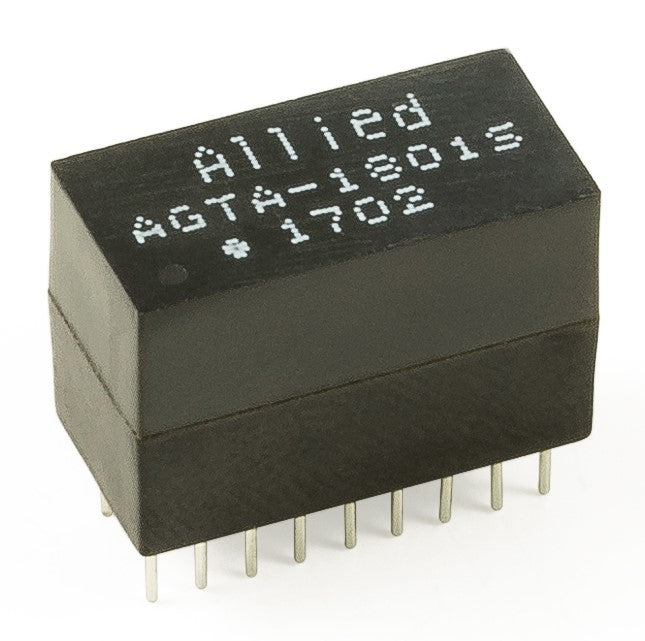

Through Hole / Single Port / 100 / 1000 Base T / AGTA-1801S

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • Cw/w: 100PF Typ @ 100KHz, 200mV
  • LL: 0.5μH Max @ 100KHz, 200mV
  • DCR: 1.4Ω Max
  • Operating Temp: 0ºC to 70ºC
Part Number

Specifications
  • Pins: 18
  • Op Temp Range: 0°c to 70°C
  • Length: 0.661 / 16.80
  • Width: 0.335 / 8.50
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Single
  • Mounting Type: Through-Hole
  • Height: 0.467 / 11.85
    • Download Datasheet
