Allied Components

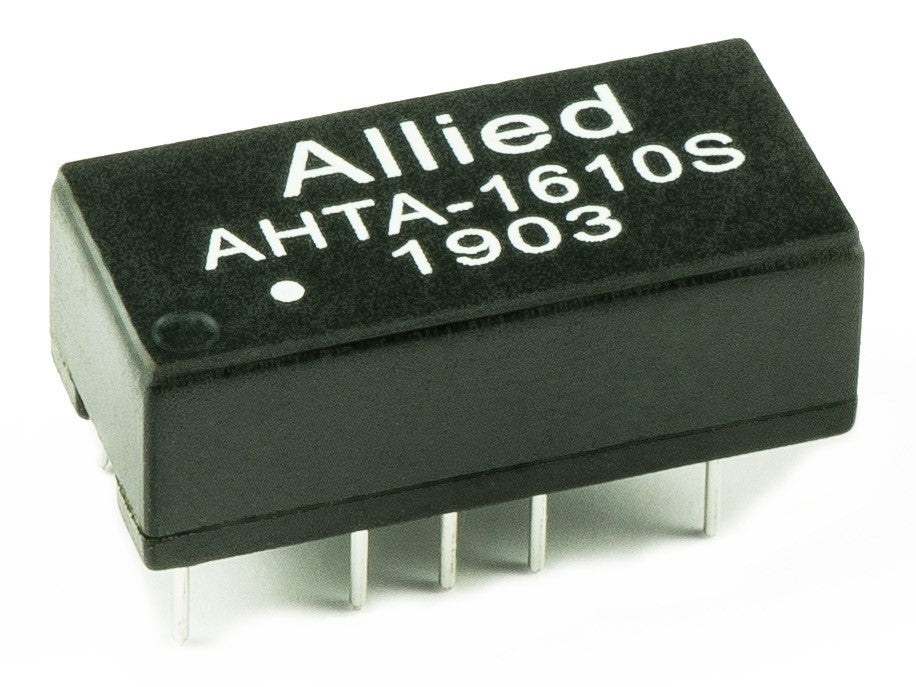

Through Hole / Single Port / 10 / 100 Base T / AHTA-1610S

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • Cw/w: 50PF Typ @ 100KHz, 0.2V
  • Polarity: 1-16, 5-12, In-Phase
  • LL: 0.5μH Max @ 100KHz, 0.2V
  • DCR: 0.9Ω Max
  • Operating Temp: 0ºC to 70ºC
Part Number

Specifications
  • Pins: 16
  • Op Temp Range: 0°c to 70°C
  • Length: 0.803 / 20.40
  • Width: 0.386 / 9.80
  • Height: 0.240 / 6.10
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Through-Hole
    • Download Datasheet
