Allied Components

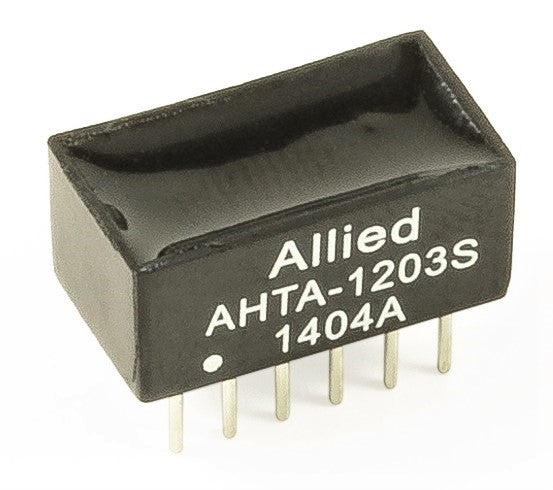

Through Hole / Single Port / 10 / 100 Base T / AHTA-1203S

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • Cw/w 25PF TYP @ 100KHz, 0.2V
  • Polarity: 1-12, 4-9, In-Phase
  • LL: 0.5μH Max @ 100KHz, 0.2V
  • DCR: 1.1Ω Max
  • Operating Temp: 0ºC to 70ºC
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: 0°c to 70°C
  • Length: 0.551 / 14.00
  • Width: 0.307 / 7.80
  • Height: 0.283 / 7.20
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Through-Hole
    • Download Datasheet
