Allied Components

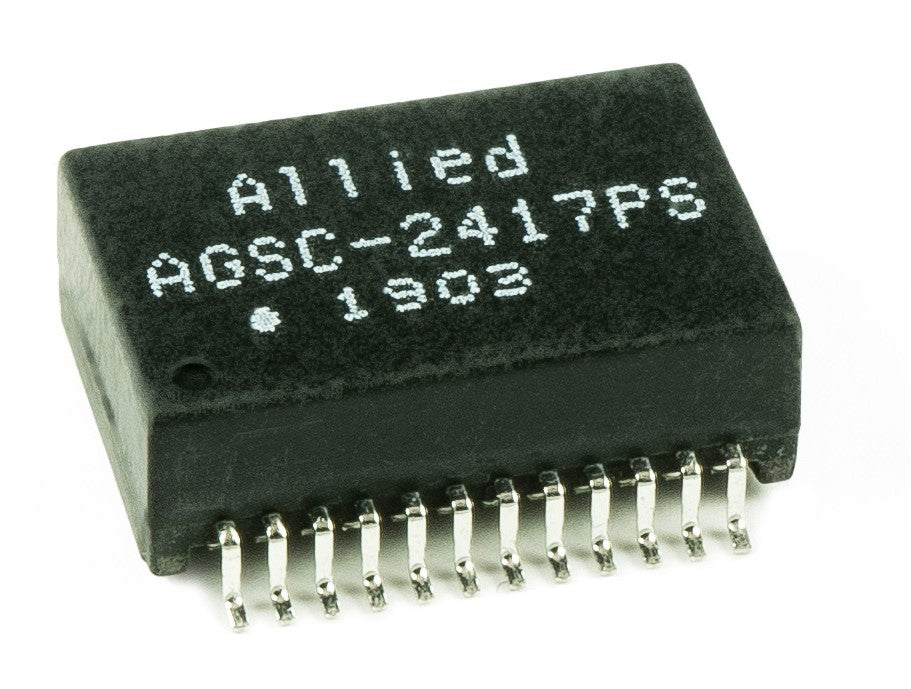

SMD / Single Port / PoE+ / 100 / 1000 Base T / AGSC-2417PS

$0.00
  • PoE Plus with 720mA Current Capability
  • Compliant to IEEE802.3at / ANSI X3.263
  • Cw/w: 25PF Typ @ 100KHz, 200mV
  • LL: 0.5μH Max @ 100KHz, 200mV
  • DCR: 0.9Ω Max
  • Operating Temp: 0ºC to 70ºC
Part Number

Specifications
  • Pins: 24
  • Op Temp Range: 0°c to 70°C
  • Length: 0.717 / 18.20
  • Width: 0.630 / 16.00
  • Height: 0.256 / 6.50
  • Power: PoE+
  • Speed: 100/1000
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
