Allied Components

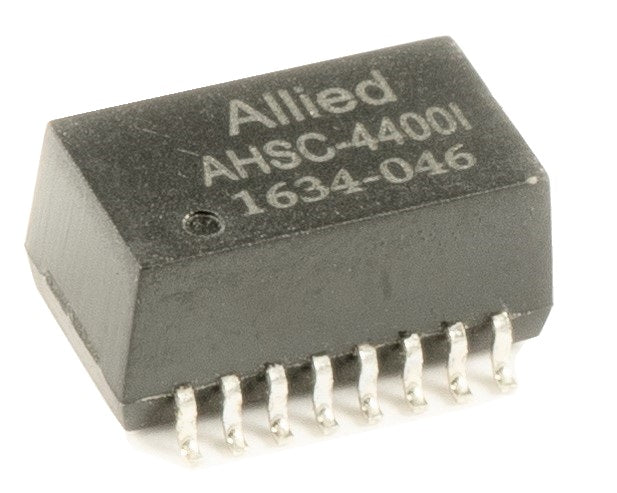

SMD / Single Port / PoE / 10 / 100 Base T / AHSC-4400I

$0.00
  • Designed to meet IEEE802.3af requirements up to 350mA
  • Primary Inductance 350μH min. with 8mA DC Bias
  • Industrial Temperature: -40ºC to +85ºC
  • Reflow Condition: Maximum reflow temperature is 20-40 sec. (Refer to IPC/JEDEC J-STD-020C standard).
Part Number

Specifications
  • Pins: 16
  • Op Temp Range: -40°C to +85°C
  • Length: 0.500 / 12.70
  • Width: 0.357 / 9.53
  • Height: 0.235 / 5.97
  • Power: PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
