Allied Components

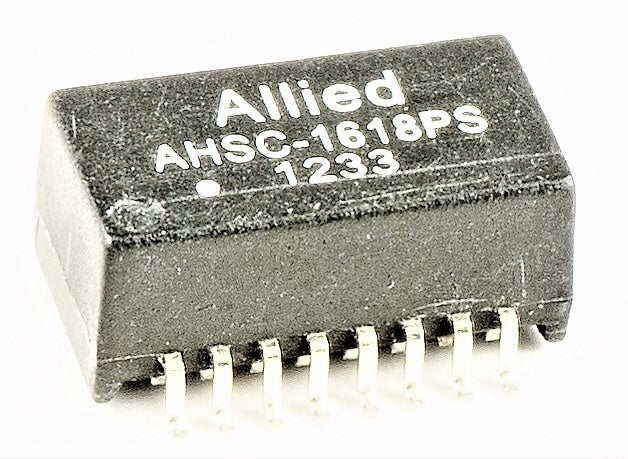

SMD / Single Port / PoE / 10 / 100 Base T / AHSC-1618PS

$0.00
  • PoE applications with 350mA Current Capability
  • Compliant to IEEE802.3af / ANSIX3.263
  • Cw/w: 25PF Typ @ 100KHz, 0.2V
  • Polarity: 1-16, 6-11, In-Phase
  • LL: 0.5μH Max @ 100KHz, 0.2V
  • DCR: 1.1Ω Max
  • Operating Temp: 0ºC to +70ºC
Part Number

Specifications
  • Pins: 16
  • Op Temp Range: 0°c to +70°C
  • Length: 0.514 / 13.05
  • Width: 0.400 / 10.00
  • Height: 0.250 / 6.30
  • Power: PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
