Allied Components

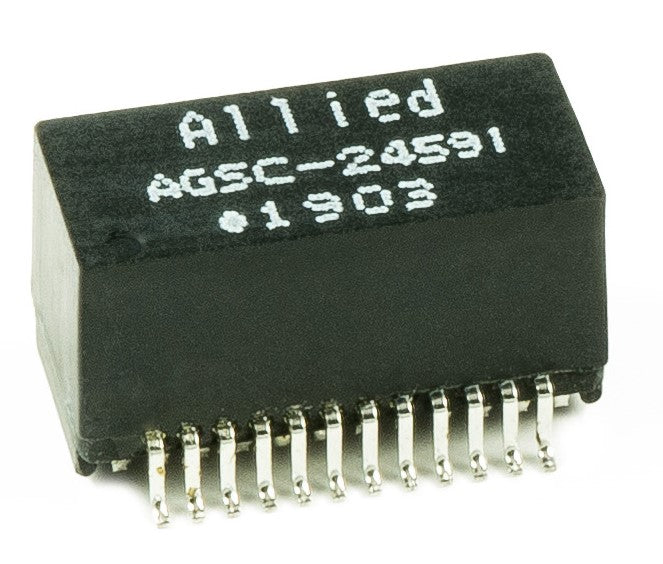

SMD / Single Port / 100 / 1000 Base T / AGSC-2459I

$0.00
  • 10/100/1000 Gigabit Base-T, Designed for Full Duplex Ethernet Applications
  • IEEE 802.3ab (Long Haul Gigabit) Compatible
  • This product supports a 6KV Hi-Pot Rating!
  • RoHS Compliant and Halogen Free
  • Operating Temperature Range: -40ºC to +85ºC
Part Number

Specifications
  • Pins: 24
  • Op Temp Range: -40°C to +85°C
  • Length: 0.594 / 15.10
  • Width: 0.394 / 10.00
  • Height: 0.323 / 8.20
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
