Allied Components

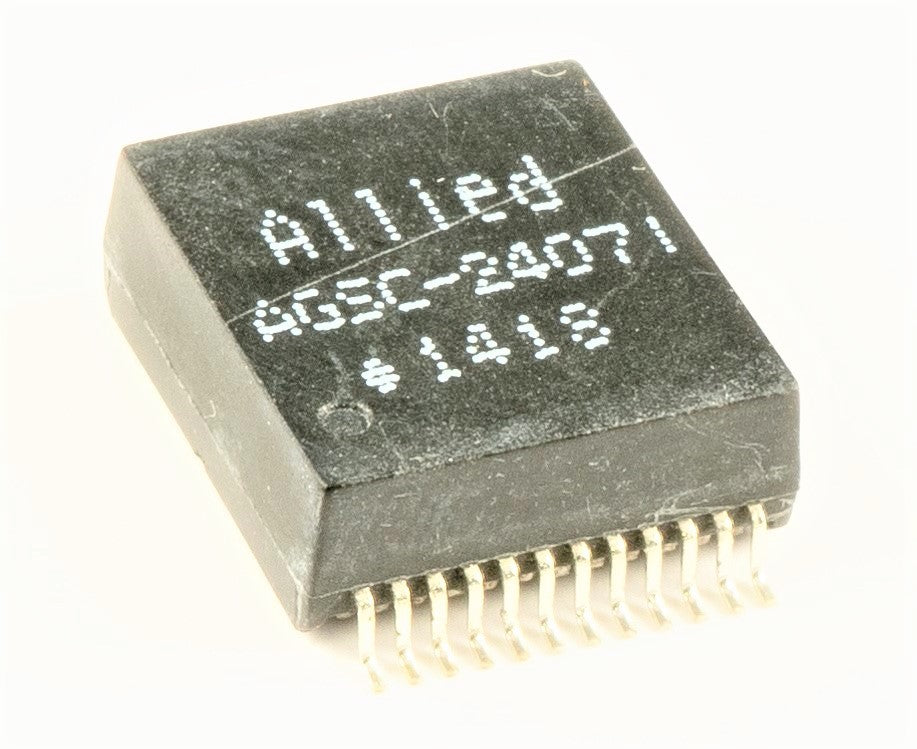

SMD / Single Port / 100 / 1000 Base T / AGSC-2407I

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • LL: 0.5μH Max @ 100KHz, 200mV
  • DCR: 1.2Ω Max
  • Cw/w: 25PF TYP @ 100KHz, 200mV
  • Industrial Operating Temp: -40ºC to +85ºC
Part Number

Specifications
  • Pins: 24
  • Op Temp Range: -40°C to +85°C
  • Length: 0.734 / 18.65
  • Width: 0.539 / 13.70
  • Height: 0.222 / 5.65
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
