Allied Components

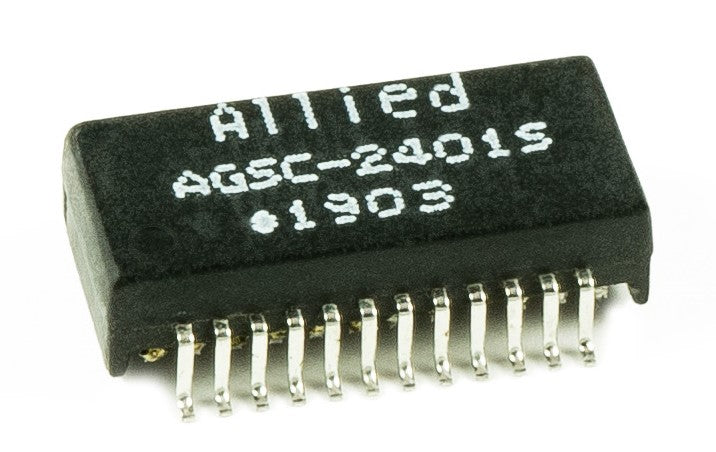

SMD / Single Port / 100 / 1000 Base T / AGSC-2401S

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • LL: 0.5μH Max @ 100KHz, 200mV
  • DCR: 1.4Ω Max
  • Cw/w: 25PF TYP @ 100KHz, 200mV
  • Operating Temp: 0ºC to +70ºC
Part Number

Specifications
  • Pins: 24
  • Op Temp Range: 0°C to +70°C
  • Length: 0.594 / 15.10
  • Width: 0.394 / 10.00
  • Height: 0.157 / 4.00
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
