Allied Components

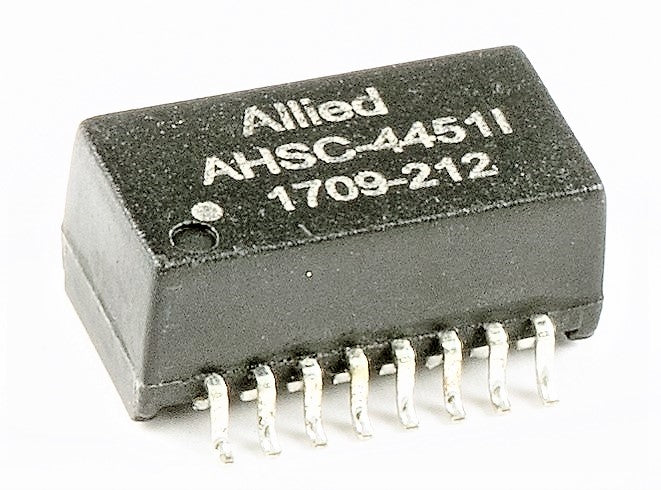

SMD / Single Port / 10 / 100 Base T / AHSC-4451I

$0.00
  • Designed to meet IEEE802.3 requirements
  • Primary Inductance 350μH min. with 8mA DC Bias
  • Industrial Temperature: -40ºC to +85ºC
  • Maximum reflow temperature is 250ºC/-5ºC, time is 20-40 sec. (Refer to IPC/JEDEC J-STD-020C standard).
Part Number

Specifications
  • Pins: 16
  • Op Temp Range: -40°C to +85°C
  • Length: 0.504 / 12.80
  • Width: 0.370 / 9.40
  • Height: 0.244 / 6.20
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
