Allied Components

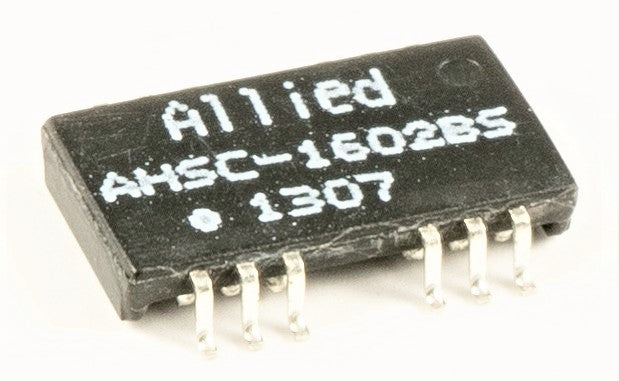

SMD / Single Port / 10 / 100 Base T / AHSC-1602BS

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • Low Profile
  • DCR: PIN 1-2, PIN 7-8 1.0Ω Max, PIN 16-15, PIN 10-9 1.4Ω Max
  • Cw/w: 15PF TYP @ 100KHz, 200mV
  • LL: 0.3uH Max @ 100KHz, 200mV
  • Polarity: 1-16, 7-10, In-Phase
  • Operating Temp: 0ºC to +70ºC
Part Number

Specifications
  • Pins: 16
  • Op Temp Range: 0°c to +70°C
  • Length: 0.500 / 12.70
  • Width: 0.378 / 9.60
  • Height: 0.089 / 2.27
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
