Allied Components

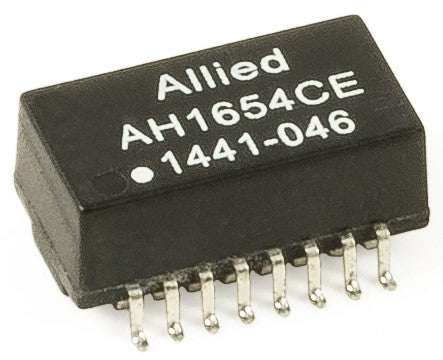

SMD / Single Port / 10 / 100 Base T / AH1654CE

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • Designed to meet IEEE802.3 requirement
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC, time is 20~40 sec. (Refer to IPC/JEDEC J-STD-020C)
  • Operating Temp: -40ºC to +110ºC
  • Made with UL approved materials UL File #’s: Case: E150608, Wire: E255839, Epoxy: E59481, Varnish: E317427
Part Number

Specifications
  • Pins: 16
  • Op Temp Range: -40°C to +110°C
  • Length: 0.504 / 12.80
  • Width: 0.370 / 9.40
  • Height: 0.244 / 6.20
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
