Allied Components

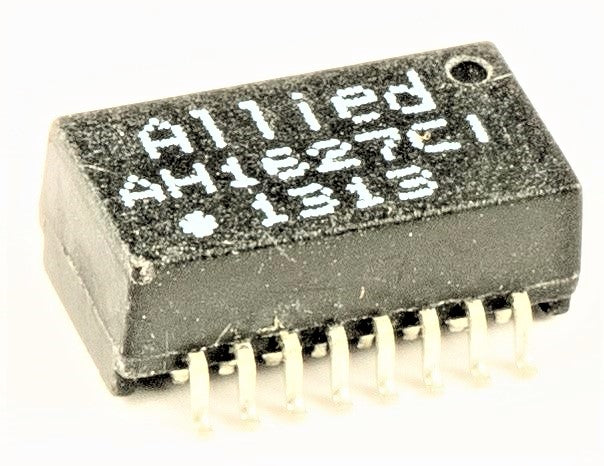

SMD / Single Port / 10 / 100 Base T / AH1627CI

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • Cw/w: 25PF TYP @ 100KHz, 0.2V
  • LL: 0.5μH Max @ 100KHz, 0.2V
  • DCR: 0.9Ω Max
  • Operating Temp: -40ºC to +85ºC
Part Number

Specifications
  • Pins: 16
  • Op Temp Range: -40°C to +85°C
  • Length: 0.504 / 12.80
  • Width: 0.400 / 10.00
  • Height: 0.250 / 6.30
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
