Allied Components

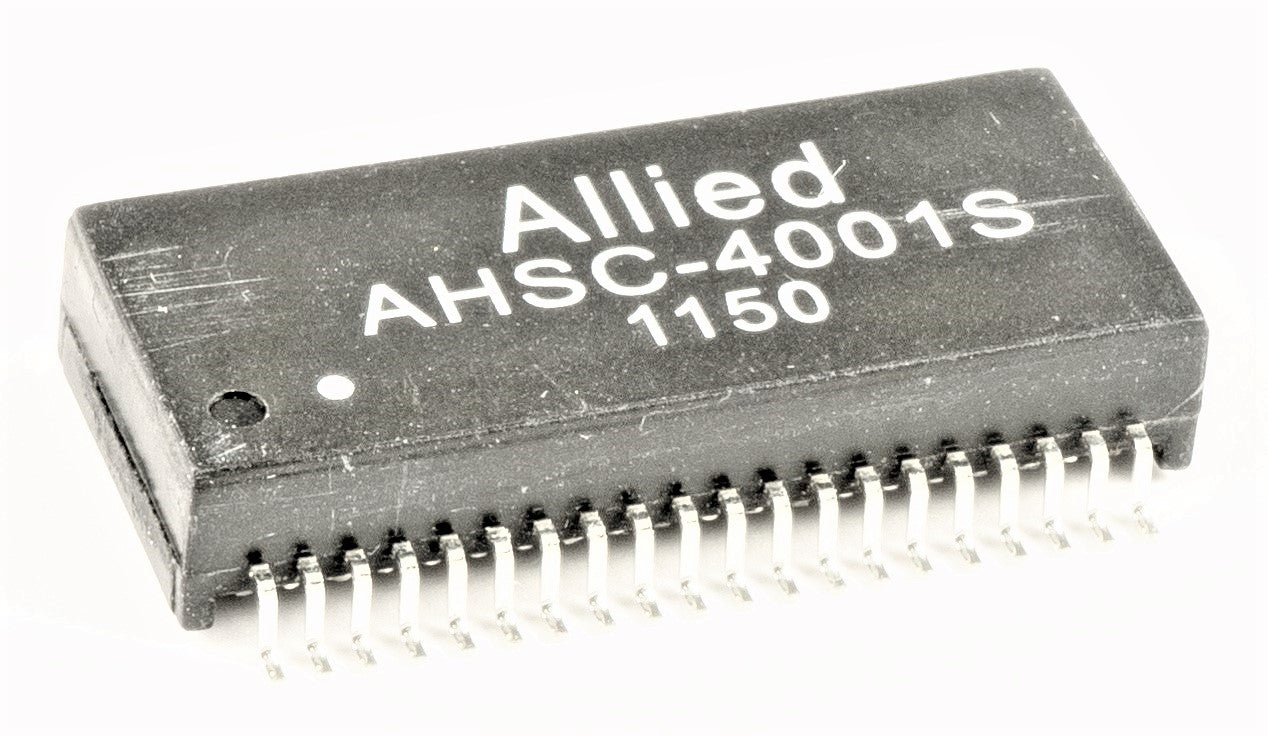

SMD / Quad Port / 10 / 100 Base T / AHSC-4001S

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • Polarity: 1-40, 4-37, 6-35, 9-32, 11-30, 14-27, 16-25, 19-22, In-Phase
  • Cw/w 50PF Typ @100KHz, 0.2V
  • LL: 0.5μH Max @ 100KHz, 0.2V
  • DCR: 0.9Ω Max
  • Operating Temp: 0ºC to 70ºC
Part Number

Specifications
  • Pins: 40
  • Op Temp Range: 0°c to 70°C
  • Length: 0.106 / 28.10
  • Width: 0.630 / 16.00
  • Height: 0.244 / 6.20
  • Power: Non-PoE
  • Speed: 10/100
  • Ports: Quad
  • Mounting Type: Surface Mount
    • Download Datasheet
