Allied Components

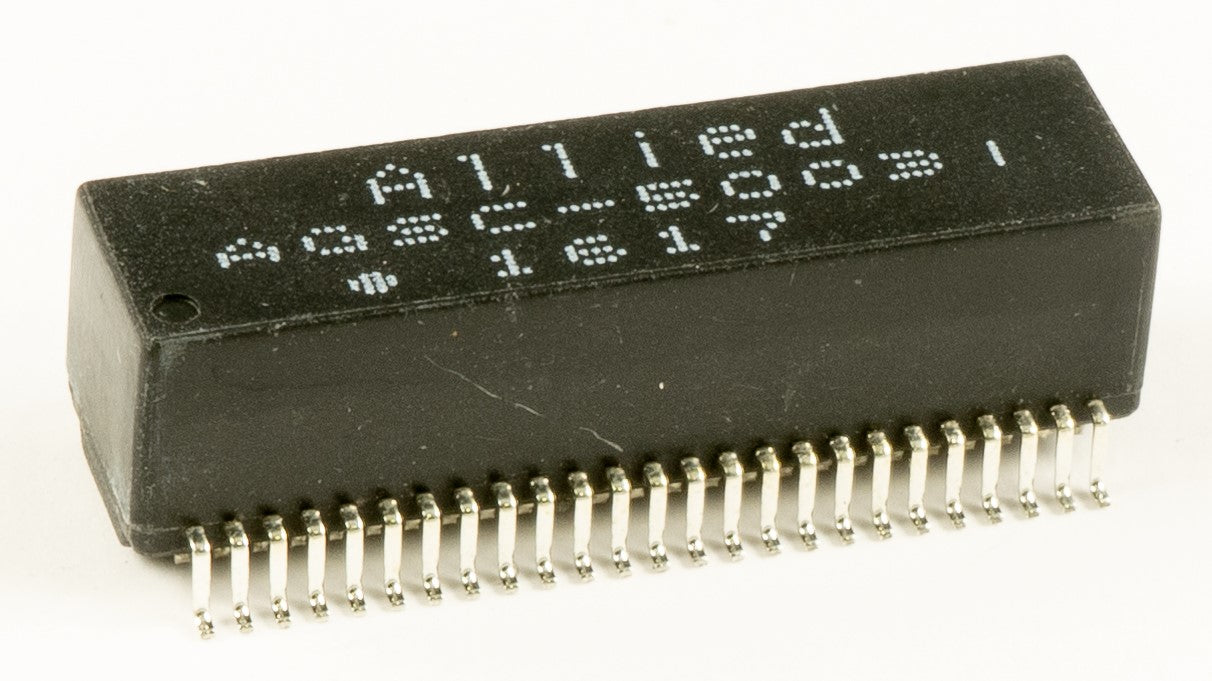

SMD / Dual Port / 100 / 1000 Base T / AGSC-5003I

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • Cw/w: 25PF TYP @ 100KHz, 0.2V
  • LL: 0.5μH Max @ 100KHz, 0.2V
  • DCR: 1.4Ω Max
  • Operating Temp: -40ºC to +85ºC
Part Number

Specifications
  • Pins: 50
  • Op Temp Range: -40°C to +85°C
  • Length: 1.100 / 27.94
  • Width: 0.430 / 10.92
  • Height: 0.340 / 8.64
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Dual
  • Mounting Type: Surface Mount
    • Download Datasheet
