Allied Components

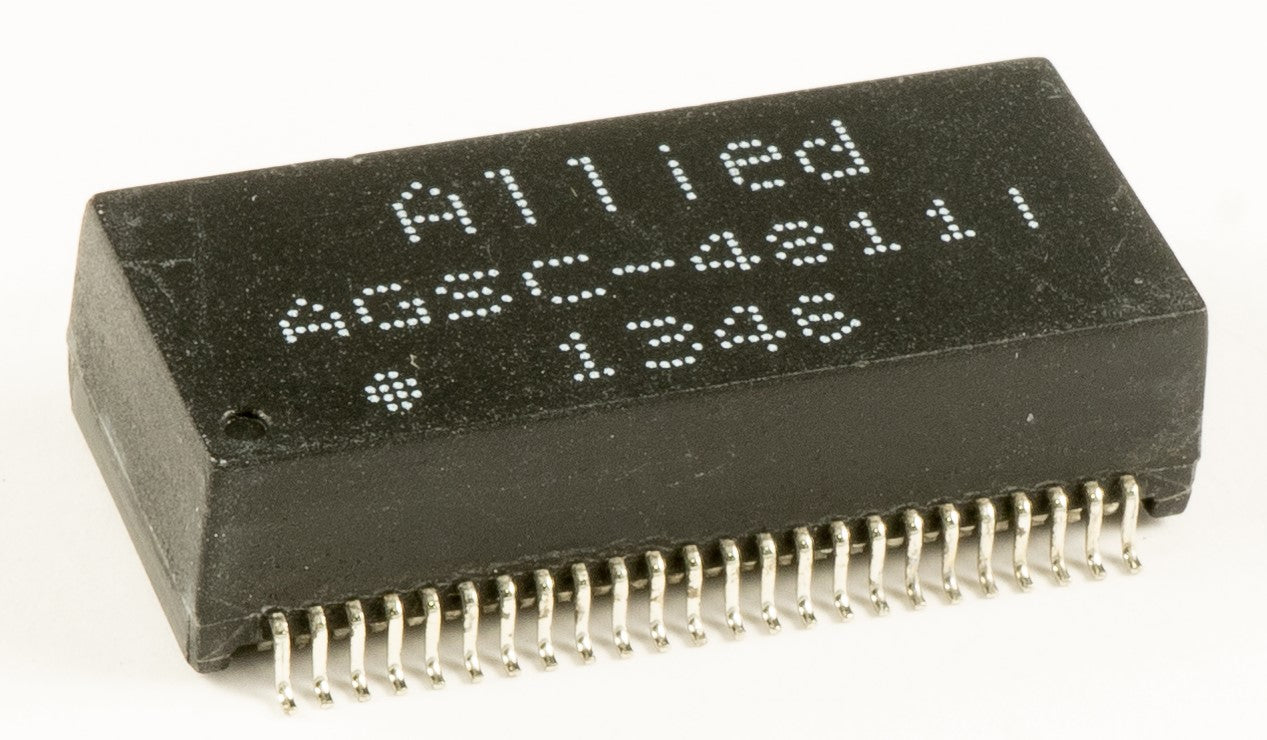

SMD / Dual Port / 100 / 1000 Base T / AGSC-4811I

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • DCR Half Winding: 0.30Ω Typ
  • DCR Balance: 0.05Ω Max
  • DC Current/Voltage Rating: 350mA@57V Continuous
  • Complies with IEEE 802.3
  • Industrial Temp: -40ºC to +85ºC
Part Number

Specifications
  • Pins: 48
  • Op Temp Range: -40°C to +85°C
  • Length: 1.094 / 27.80
  • Width: 0.598 / 15.20
  • Height: 0.283 / 7.20
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Dual
  • Mounting Type: Surface Mount
    • Download Datasheet
