Allied Components

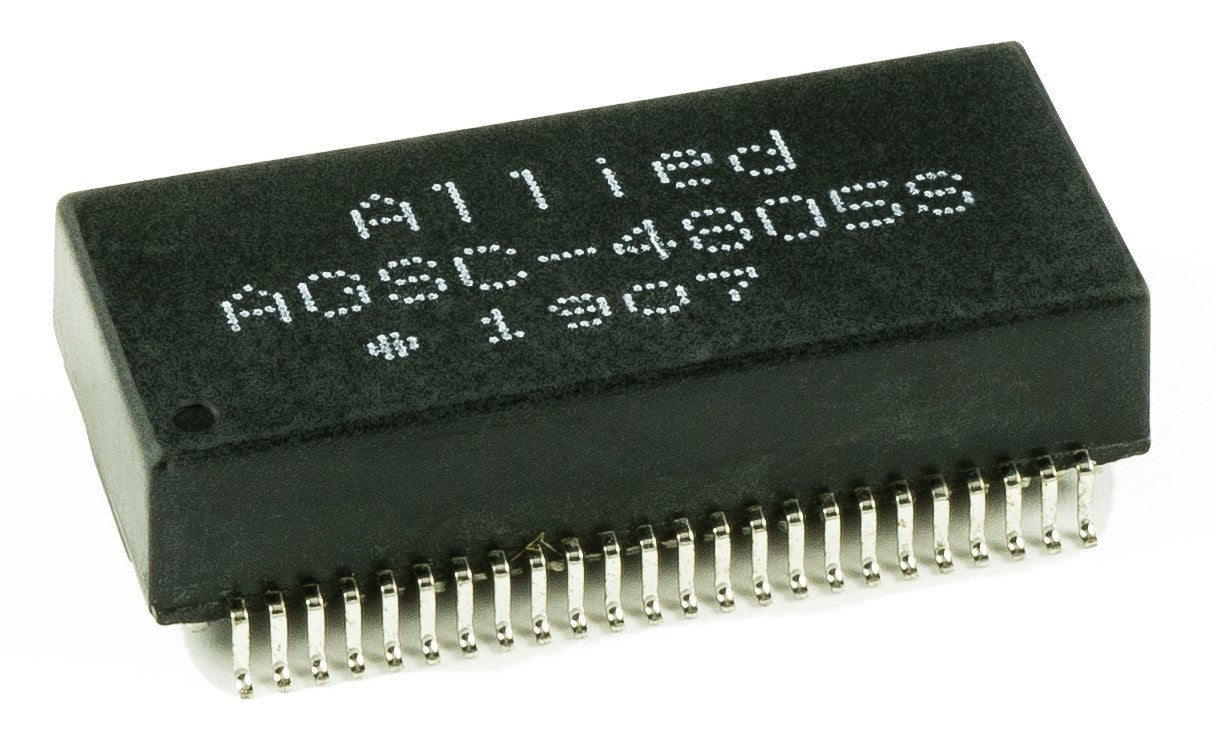

SMD / Dual Port / 100 / 1000 Base T / AGSC-4805S

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • Polarity: 2-47, 5-44, 8-41, 11-38, 14-35, 17-32, 20-29, 23-26 In-Phase
  • LL: 0.5µH Max @ 100KHz, 0.2V
  • DCR: 0.9Ω Max
  • Cw/w: 25PF TYP @ 100KHz, 0.2V
  • Operating Temp: 0ºC to +70ºC
Part Number

Specifications
  • Pins: 48
  • Op Temp Range: 0°C to +70°C
  • Length: 1.094 / 27.80
  • Width: .598 / 15.20
  • Height: .283 / 7.20
  • Power: Non-PoE
  • Speed: 100/1000
  • Ports: Dual
  • Mounting Type: Surface Mount
    • Download Datasheet
