Allied Components

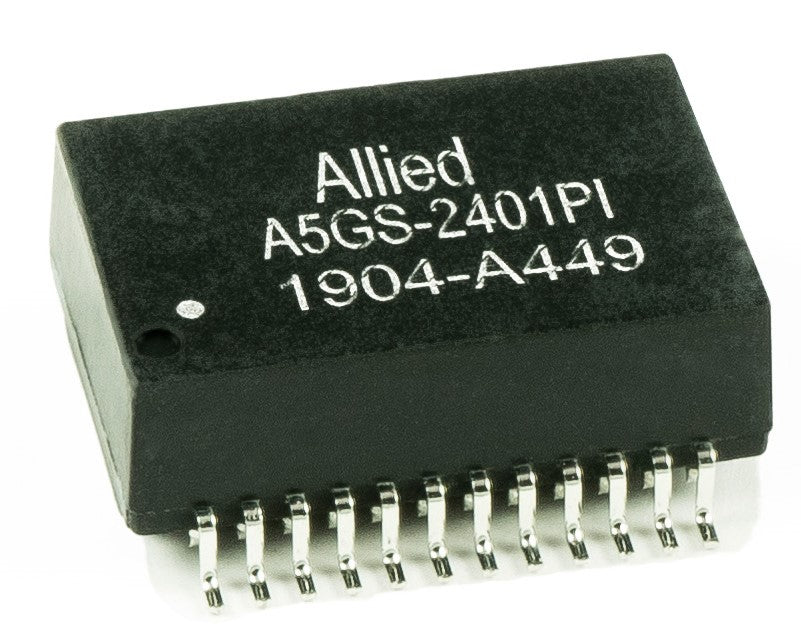

SMD / 5G Base T / Single Port / PoE+ / A5GS-2401PI

$0.00
  • PoE+ applications with 720mA Current
  • Designed to meet IEEE802.3at
  • Operating Temperature Range: -40ºC to +85ºC
  • Storage Temperature Range: -40°C to +125°C
  • Reflow Condition: Tp is 260°C / -5°C for 30 Sec. (Refer to IPC / JEDEC J-STD-020 standard)
Part Number

Specifications
  • Pins: 24
  • Op Temp Range: -40°C to +85°C
  • Length: 0.728 / 18.50
  • Width: 0.630 / 16.00
  • Height: 0.270 / 6.85
  • Power: PoE+
  • Speed: 5G
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
