Allied Components

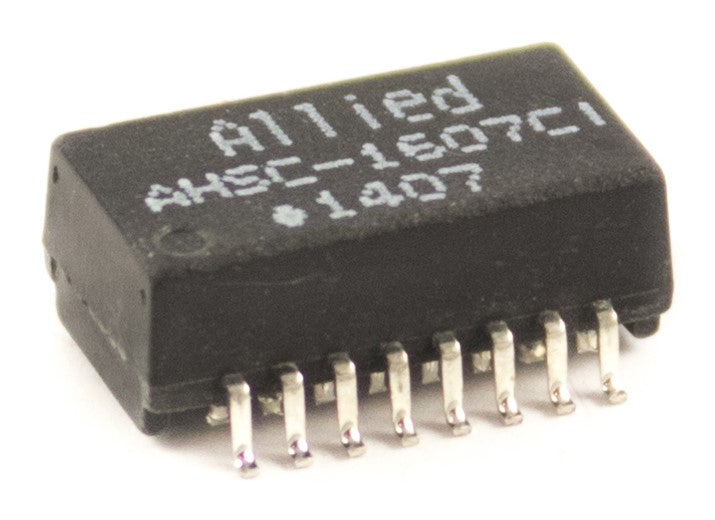

SMD / 10/100 Base T / Single Port / PoE+ / AHSC-1607CI

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • For PoE+ applications with 700mA current capability compliant to 802.3AT
  • Polarity: 1-16, 6-11, In-Phase
  • LL: 0.5μH Max @ 100KHz, 0.2V
  • DCR: 0.9Ω Max
  • Operating Temp: -40ºC to +85ºC
Part Number

Specifications
  • Pins: 16
  • Op Temp Range: -40°C to +85°C
  • Length: 0.504 / 12.80
  • Width: 0.400 / 10.00
  • Height: 0.250 / 6.30
  • Power: PoE+
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
