Allied Components

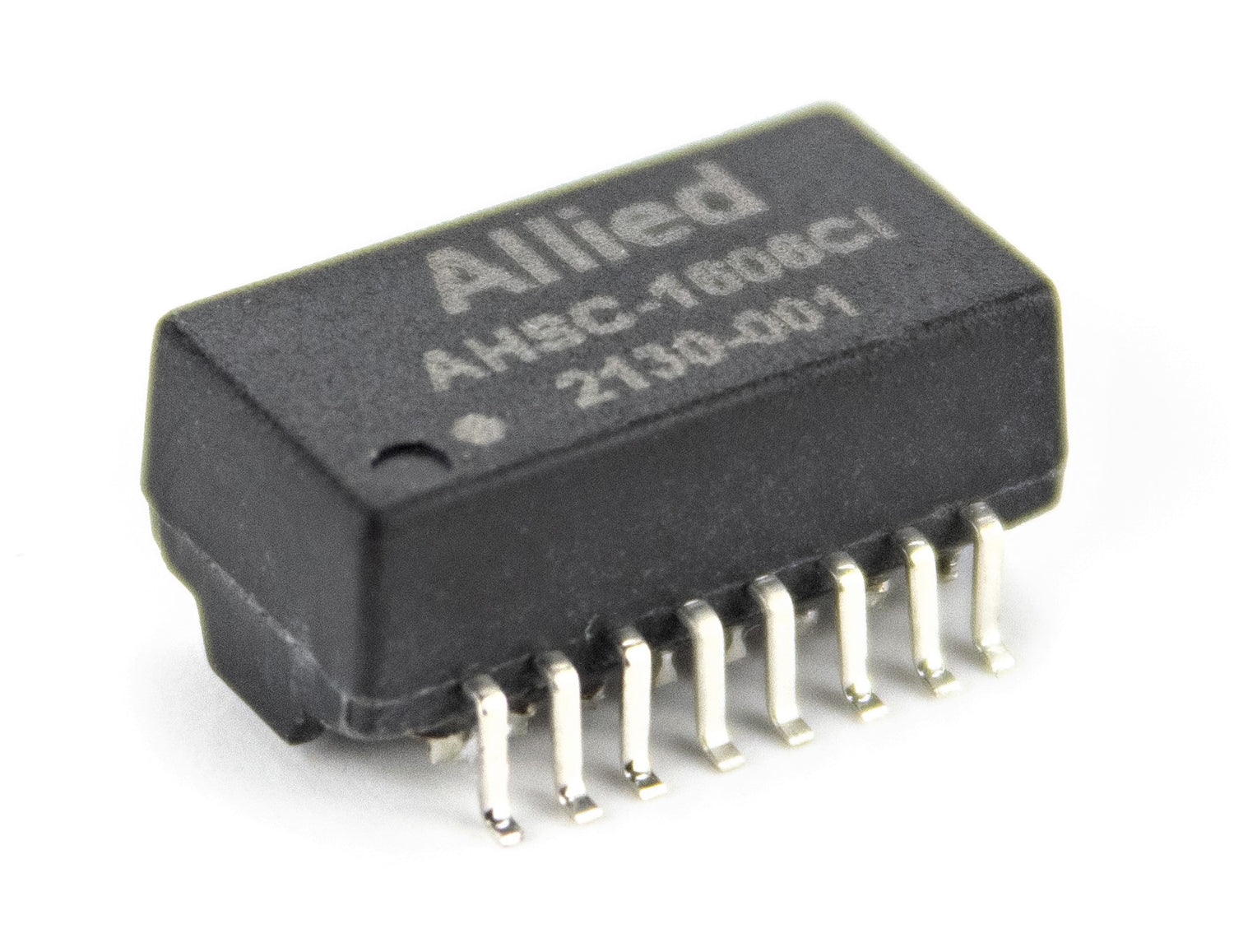

SMD / 10/100 Base T / Single Port / PoE+ / AHSC-1606CI

$0.00
  • Ethernet based LAN, WAN and other networking applications
  • For PoE+ applications with 720mA current capability compliant to 802.3at
  • DCR: 0.9Ω Max
  • Operating Temp: -40ºC to +85ºC
  • Reflow condition: Peak 260°C for 5 Sec
Part Number

Specifications
  • Pins: 16
  • Op Temp Range: -40°C to +85°C
  • Length: .516 / 13.1
  • Width: .370 / 9.4
  • Height: .244 /6.2
  • Power: PoE+
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
