Allied Components

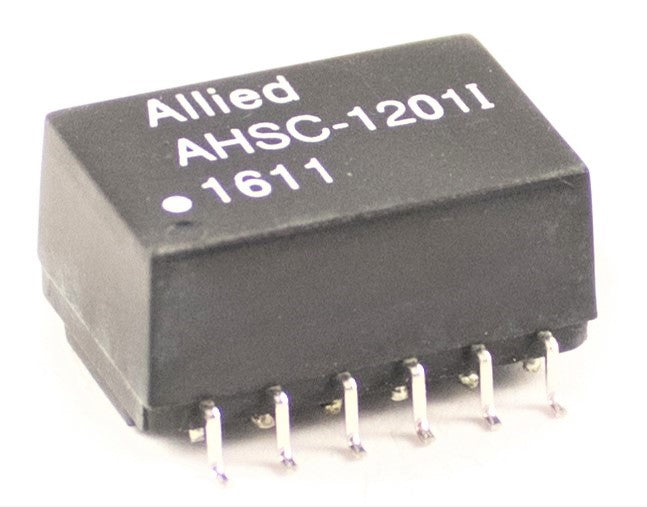

SMD / 10/100 Base T / Single Port / PoE+ / AHSC-1201I

$0.00
  • PoE Plus applications
  • For Ethernet based LAN, WAN and other networking applications
  • Designed to meet IEEE802.3at specification
  • 350μH Min OCL @ 24mA bias
  • Operating Temp: -40ºC to +85ºC
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +85°C
  • Length: 0.665/16.90
  • Width: 0.591 / 15.00
  • Height: 0.333 / 8.45
  • Power: PoE+
  • Speed: 10/100
  • Ports: Single
  • Mounting Type: Surface Mount
    • Download Datasheet
