Allied Components

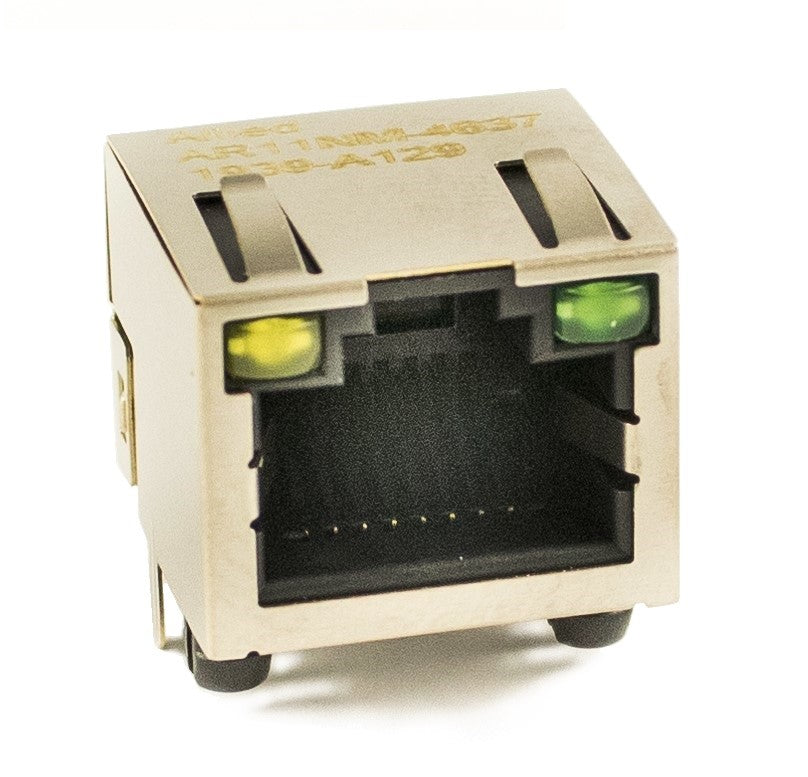

Single Port / Through Hole / AR11NM-4637I

$0.00
  • Insulation Resistance: 1000mΩ Min @ 500VDC
  • Contact Resistance: 20mΩ Max
  • Current Rating: 1.5AMP
  • Voltage Rating: 125VAC RMS
  • Dielectric Strengths: 1000VAC or 1500VDC RMS @ 0.5mA 50Hz/60Hz for 60 Sec.
  • Industrial Operating Temp Range: -40°C to +85°C
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: Non-PoE
  • Speed: Without Magnetics
  • Ports: Single
  • Mounting Type: Through-Hole
  • Orientation: Right Angle
  • Tab: Tab Up
  • LED: Y/G
  • EMI Fingers: Yes
    • Download Datasheet
