Allied Components

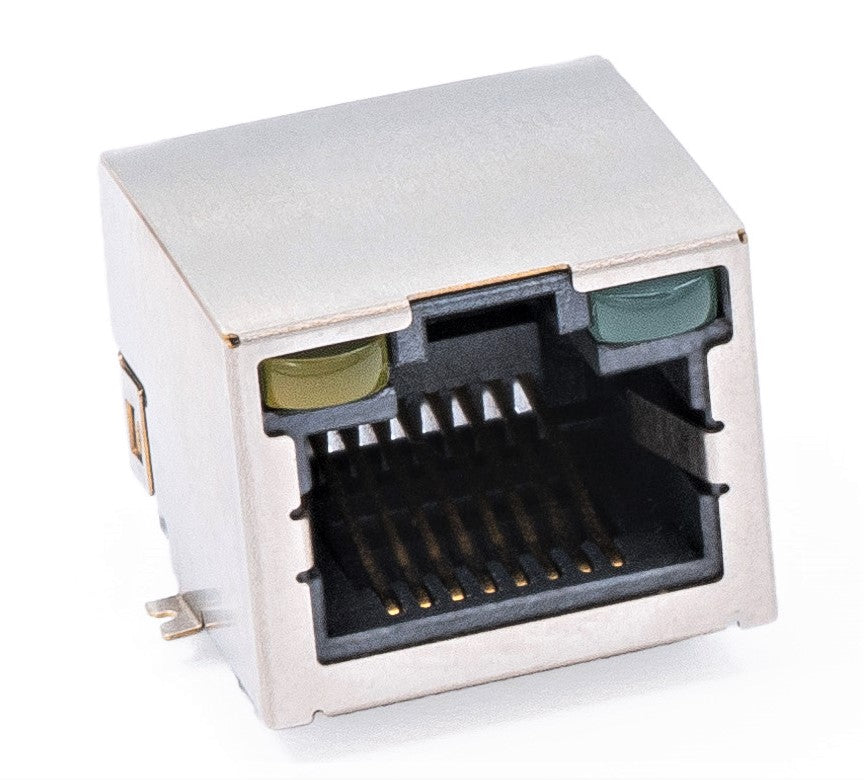

Single Port / SMD / AR11NM-4518I

$0.00
  • Insulation Resistance: 1000mΩ Min @ 500VDC
  • Contact Resistance: 20mΩ Max
  • Current Rating: 1.5AMP
  • Voltage Rating: 125VAC RMS
  • Dielectric Strengths: 1000VAC or 1500VDC RMS @ 0.5mA 50Hz/60Hz for 60 Sec.
  • Industrial Operating Temp Range: -40°C to +85°C
  • Reflow Soldering Temperature: 260±5°C 5~10 Sec.
Part Number

Specifications
  • Op Temp Range: -40°C to +85°C
  • Power: Non-PoE
  • Speed: Without Magnetics
  • Ports: Single
  • Mounting Type: Surface Mount
  • Orientation: Right Angle
  • Tab: Up
  • LED: Y/G
  • EMI Fingers: No
    • Download Datasheet
