Allied Components

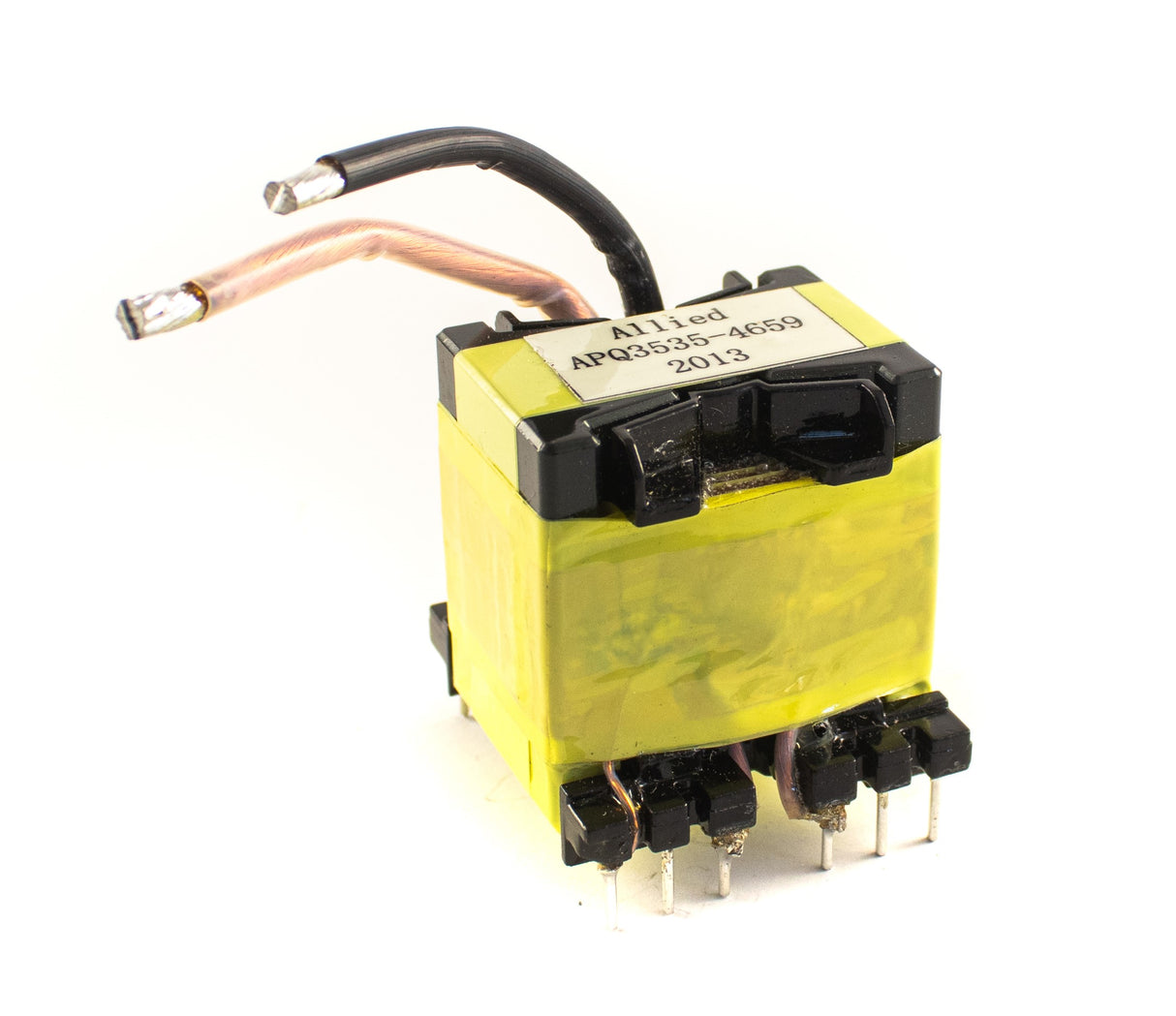

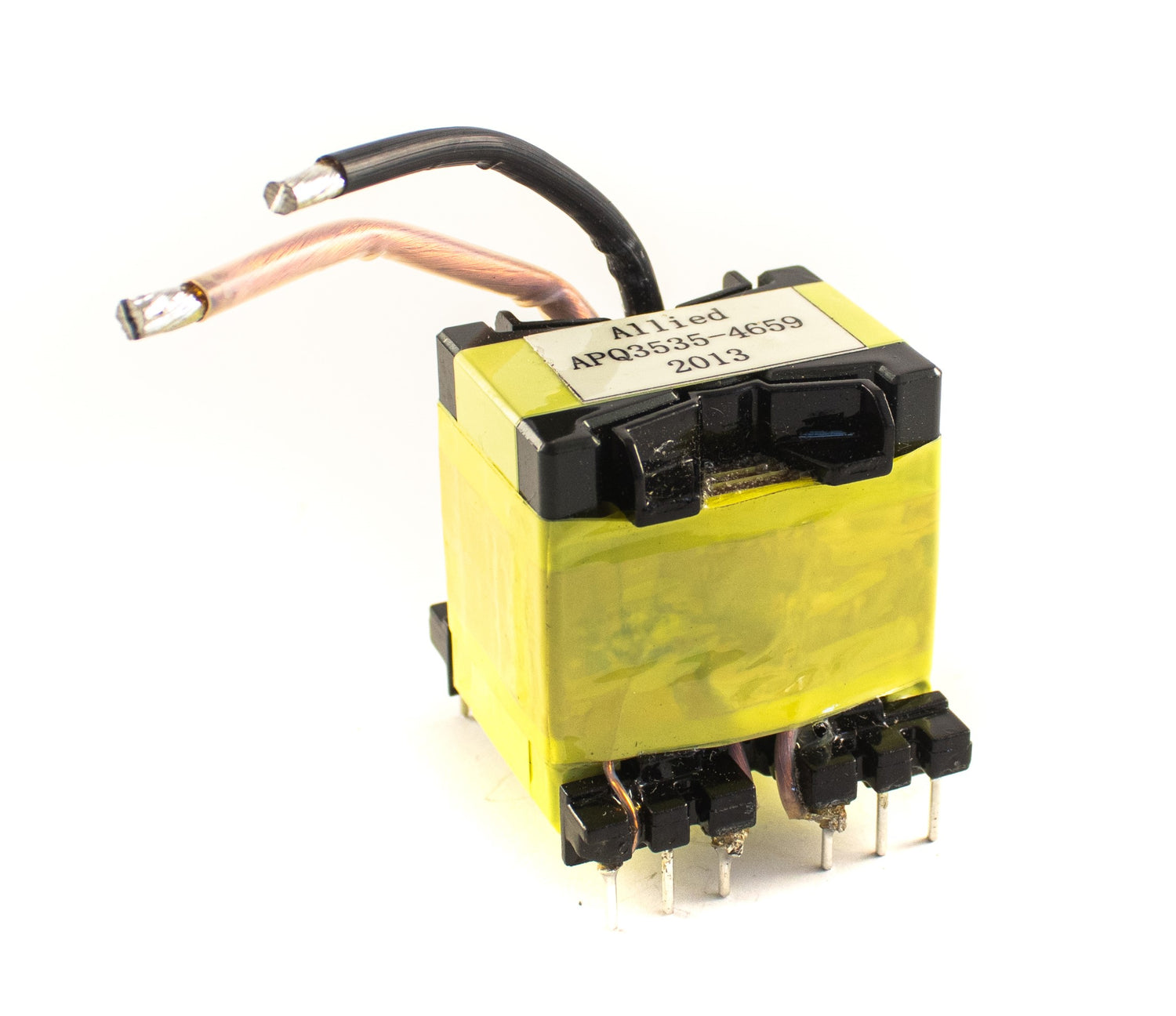

PQ3535 Vertical Mount / APQ3535-4659

$0.00
  • PQ3535 Core Package
  • Vertical Mount
  • Through Hole Design
  • Operating Temperature Range: -40°C to +125°C
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +125°C
  • Length: 1.614 / 41.0
  • Width: 1.496 / 38.0
  • Height: 1.496 / 38.0
  • Primary Inductance: 190µH
  • Turns Ratio: 6.667 : 1
  • Geometry: PQ3535
  • Mounting Type: Through-Hole
    • Download Datasheet
