Allied Components

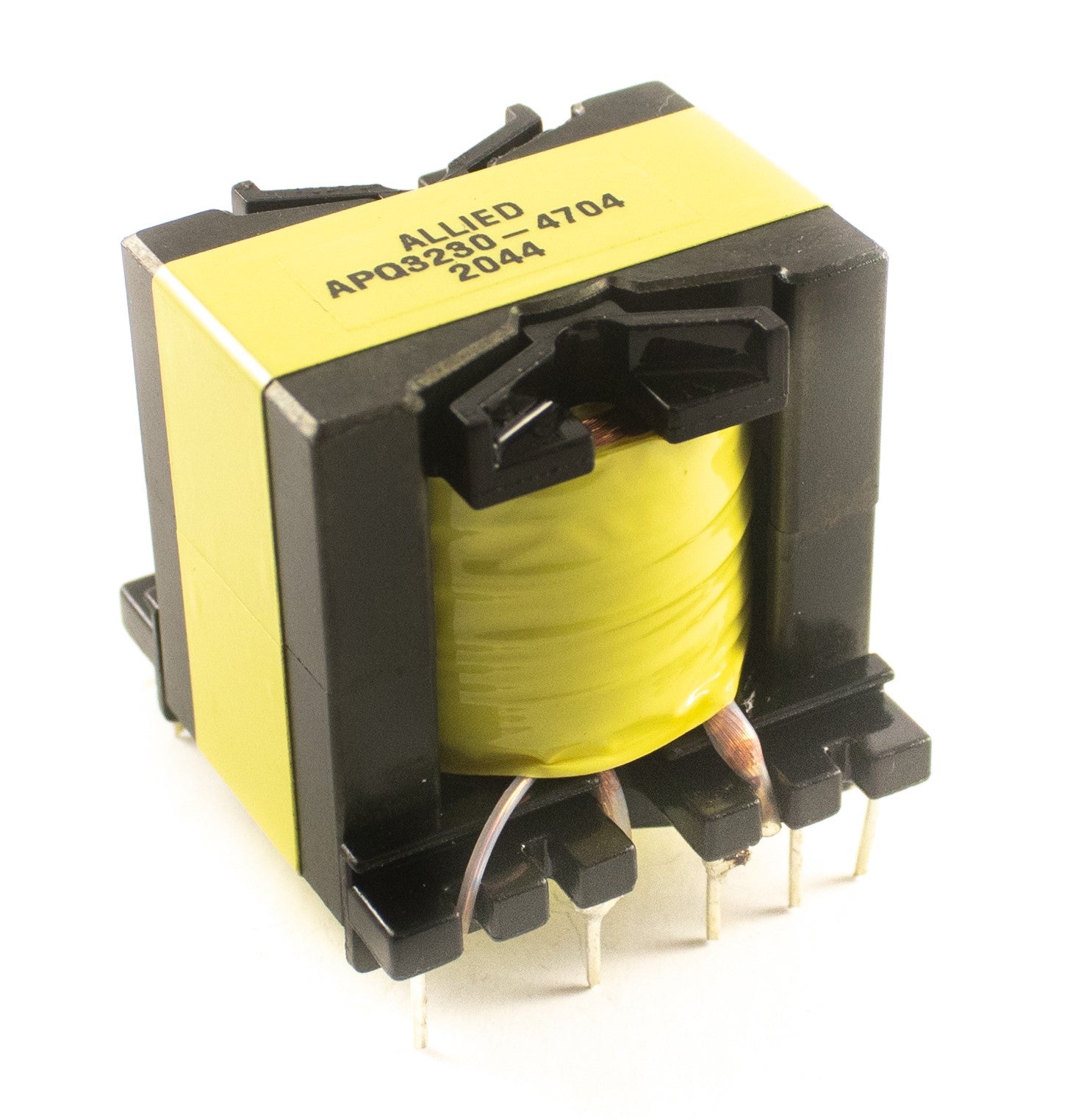

PQ3230 Horizontal Mount / APQ3230-4704

$0.00
  • PQ3230 Core Package
  • Through Hole Design
  • Extended Operating Temperature Range: -40ºC to +85ºC
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +85°C
  • Length: 1.398 / 35.5
  • Width: 1.358 / 34.5
  • Height: 1.319 / 33.5
  • Primary Inductance: 1.5mH
  • Turns Ratio: 4 :1
  • Geometry: PQ3230
  • Mounting Type: Through-Hole
    • Download Datasheet
