Allied Components

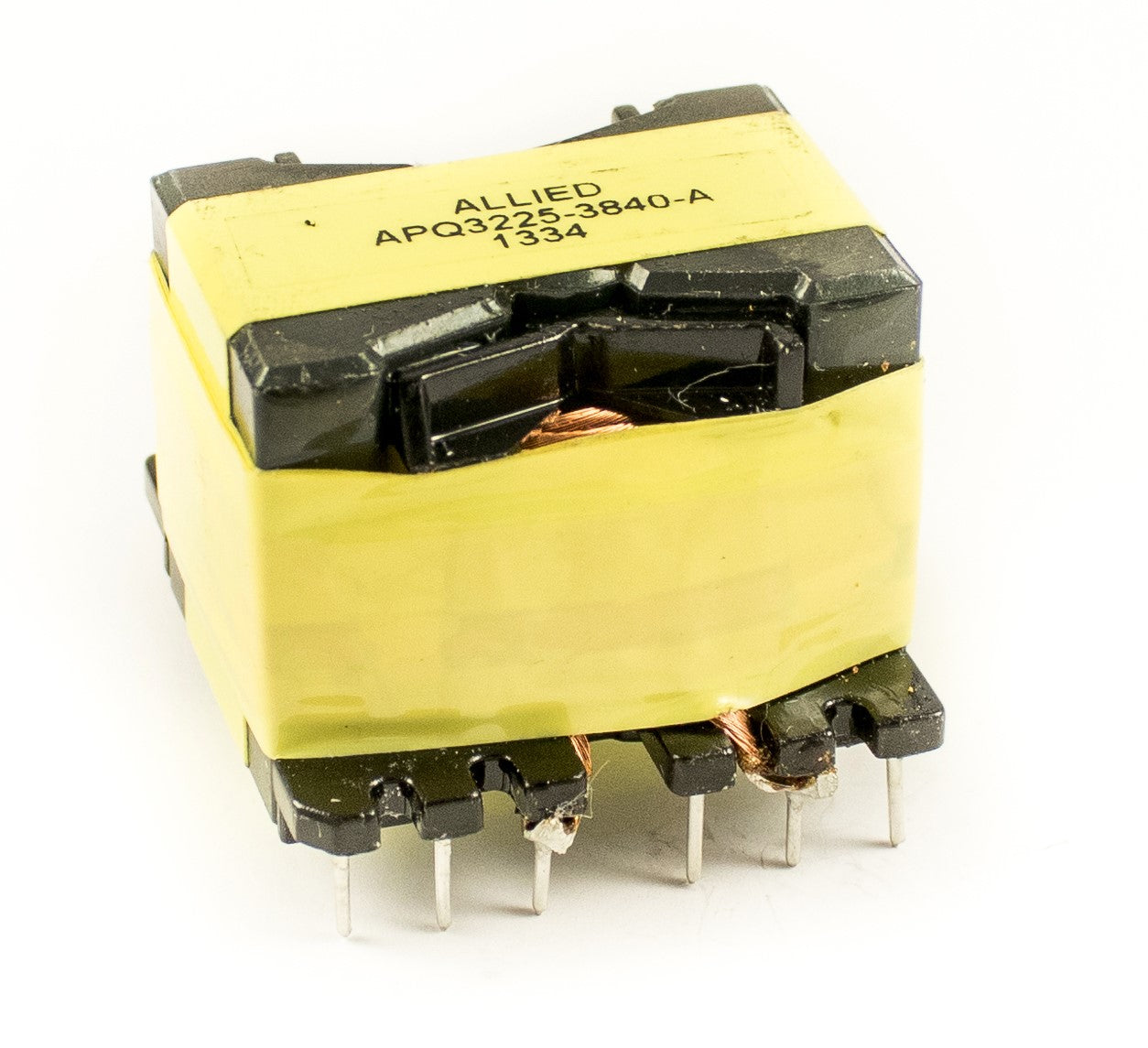

PQ3225 PFC / APQ3225-3840-A

$0.00
  • PQ3225 Core Design
  • 12 Pin Through Hole, Horizontal Mount
  • Copper Shield Terminated at Pin 10
  • Power Factor Correction
  • UL Class B 130
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +85°C
  • Length: 1.437 / 36.5
  • Width: 1.398 / 35.5
  • Height: 1.083 / 27.5
  • Primary Inductance: 175µH
  • Turns Ratio: 39T
  • Geometry: PQ3225
  • Mounting Type: Through Hole
    • Download Datasheet
