Allied Components

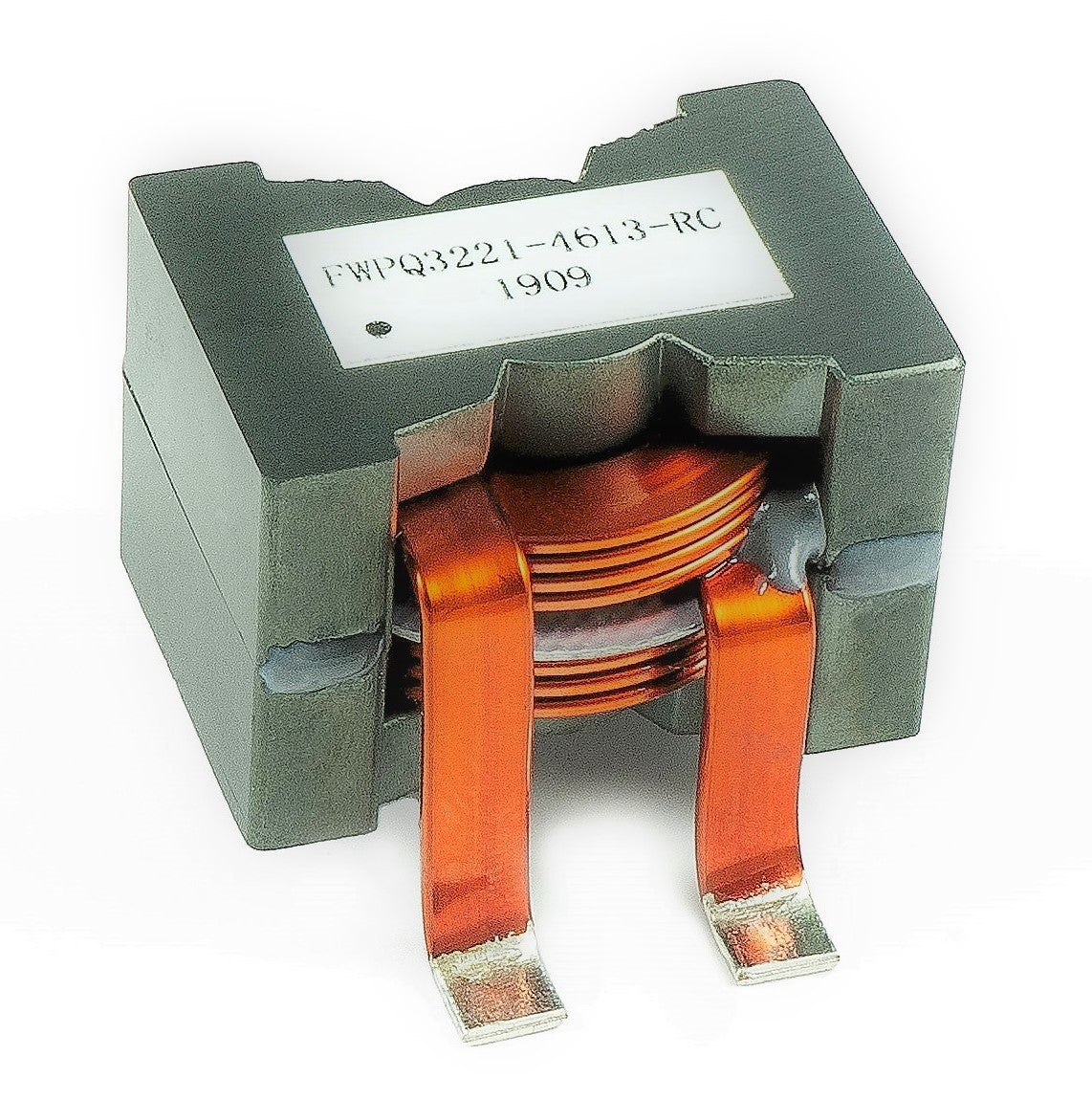

PQ3221 Flat Wire Transformer / FWPQ3221-4613-RC

$0.00
  • PQ3221 Core Design
  • 4 Pin SMD, Horizontal Mount
  • Low DCR
  • High Saturation Current
  • Class F Wire
  • Operating Temperature Range: -40ºC to +125ºC
Part Number

Specifications
  • Pins: 4
  • Op Temp Range: -40°C to +125°C
  • Length: 1.692 / 43.0
  • Width: 1.319 / 33.5
  • Height: 1.023 / 26.0
  • Primary Inductance: 145µH
  • Turns Ratio: 4.75 : 4.1
  • Geometry: PQ3221
  • Mounting Type: Surface Mount
    • Download Datasheet
