Allied Components

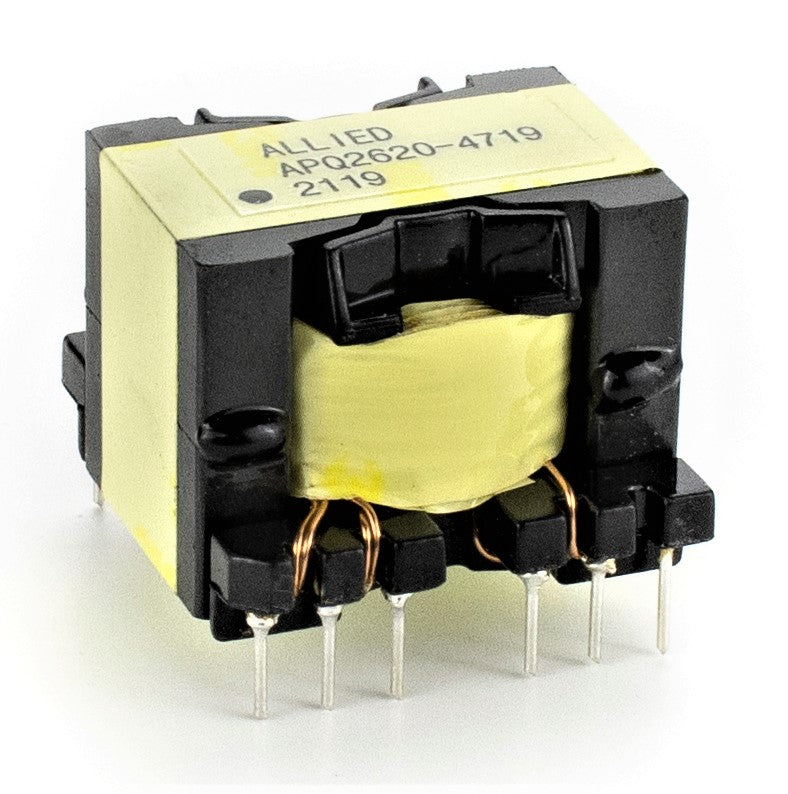

PQ2620 Horizontal Mount / APQ2620-4719

$0.00
  • PQ2620 Core Package
  • Through Hole Design
  • Operating Temperature Range: -40ºC to +105ºC
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +105°C
  • Length: 1.220 / 31.0
  • Width: 1.102 / 28.0
  • Height: 1.043 / 26.5
  • Primary Inductance: 586µH
  • Turns Ratio: 1 : .111 : .089 : .2
  • Geometry: PQ2620
    • Download Datasheet
