Allied Components

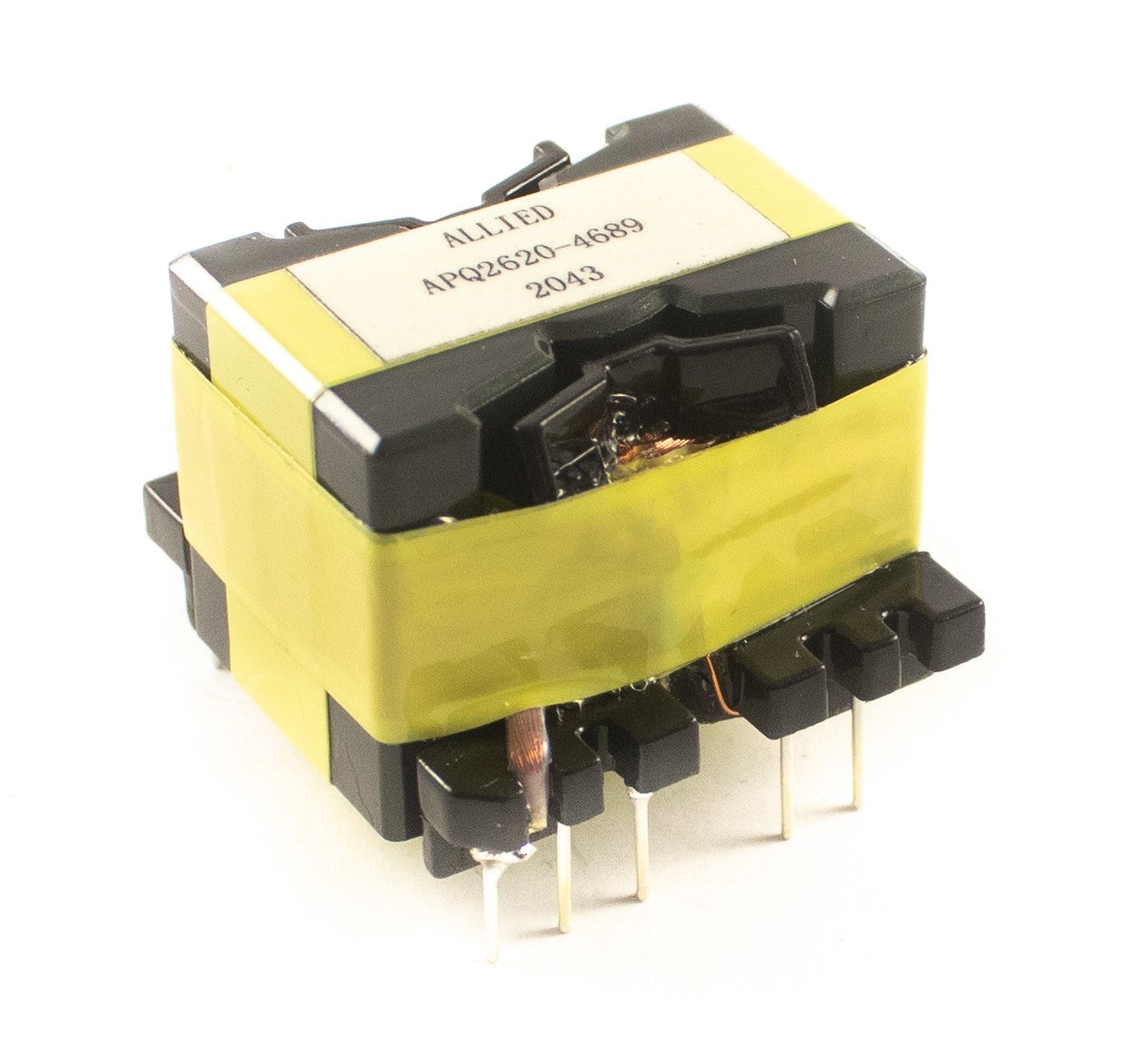

PQ2620 Horizontal Mount / APQ2620-4689

$0.00
  • PQ2620 Core Package
  • Through Hole Design
  • Operating Temperature Range: -40ºC to +125ºC
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +125°C
  • Length: 1.184 / 30.07
  • Width: 1.150 / 29.2
  • Height: .886 / 22.0
  • Primary Inductance: 425µH
  • Turns Ratio: 9.18 : 1
  • Geometry: PQ2620
  • Mounting Type: Through-Hole
    • Download Datasheet
