Features

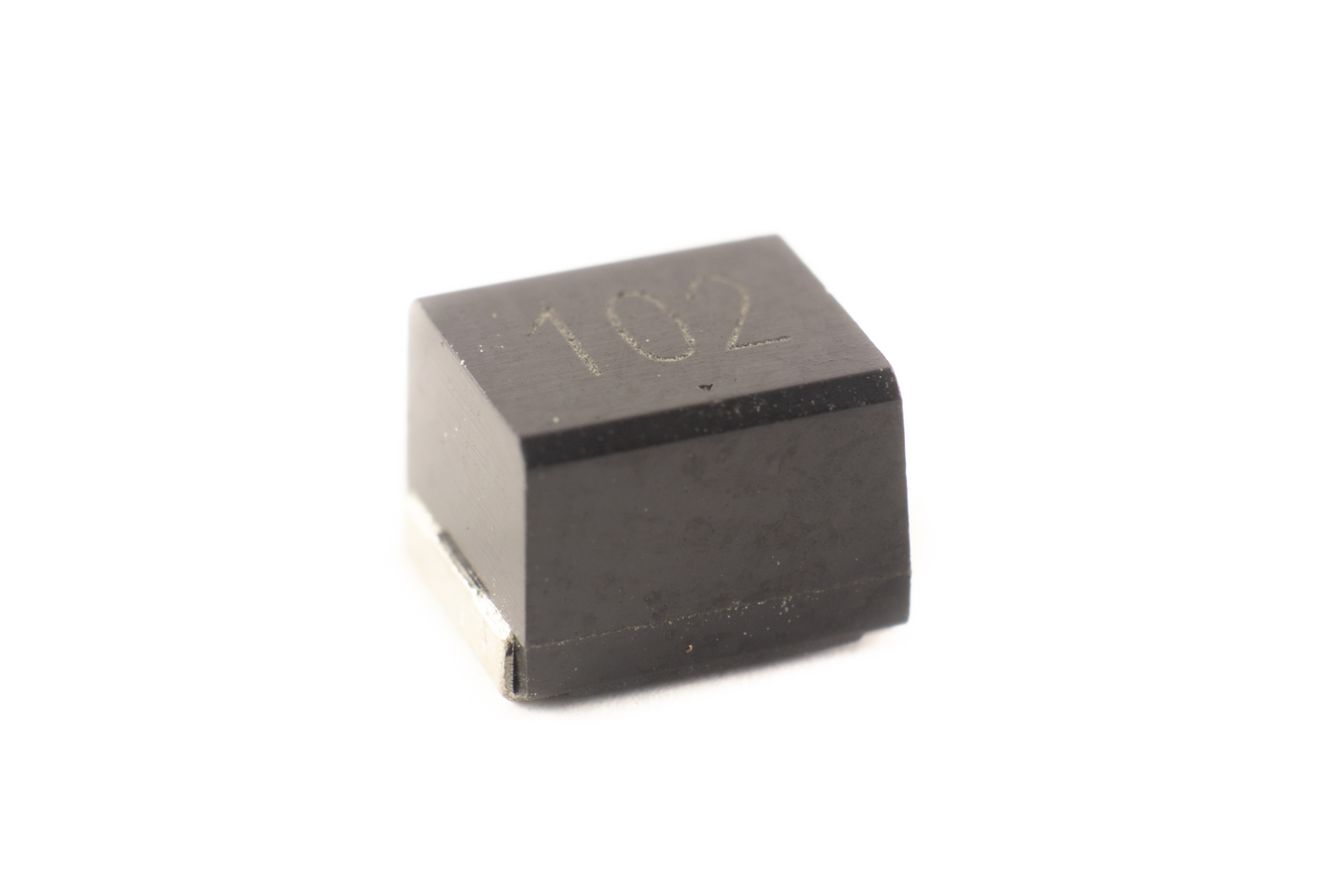

- 2220 High Current Molded Chip Inductor
- High Resistance to Mechanical Shock
- Precision Molding for Auto Insertion
- Excellent Solder Heat Resistance
- Welded internail lead frame to coil wire connection
Electrical
- Inductance Range: 1.0µh ~ 10,000µh
- Tolerance: 10% over entire range also available in 5%
- Test Frequency: 1.0µh ~ 8.2µh @ 7.96MHz, 10µh ~ 82µh @ 2.52MHz,100µH~820µH @.796MHz, 1000µH~8200µH@ .252MHz,10,000µH @ .079MHz
- Operating Temp: -40ºC ~ +125ºC @ 75% RH
- IDC: The current at which inductance will drop no more then 10% of it’s initial value.
Resistance to Soldering Heat
- Pre-heating 150°C, 1 min
- Solder Composition: Sn/Ag3.0/Cu0.5
- Solder Composition:260 ± 5°C
- Immersion Time: 4 ± 1sec
Physical
- Packaging: 1000 pieces, 13” reel
- Marking: EIA inductance code
MCHC40 Series - MCHC40-1R0K-RC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Inductance: 1µH
- Rated Current: 1800mA
- DCR Max: 0.03Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.2µH
- Rated Current: 1700mA
- DCR Max: 0.035Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.5µH
- Rated Current: 1600mA
- DCR Max: 0.04Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.8µH
- Rated Current: 1400mA
- DCR Max: 0.05Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2.2µH
- Rated Current: 1300mA
- DCR Max: 0.06Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2.7µH
- Rated Current: 1200mA
- DCR Max: 0.07Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3.3µH
- Rated Current: 1120mA
- DCR Max: 0.08Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3.9µH
- Rated Current: 1050mA
- DCR Max: 0.09Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 4.7µH
- Rated Current: 950mA
- DCR Max: 0.11Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 5.6µH
- Rated Current: 880mA
- DCR Max: 0.13Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 6.8µH
- Rated Current: 810mA
- DCR Max: 0.15Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 8.2µH
- Rated Current: 750mA
- DCR Max: 0.18Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 10µH
- Rated Current: 690mA
- DCR Max: 0.21Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 12µH
- Rated Current: 630mA
- DCR Max: 0.25Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 15µH
- Rated Current: 580mA
- DCR Max: 0.3Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 18µH
- Rated Current: 530mA
- DCR Max: 0.36Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 22µH
- Rated Current: 480mA
- DCR Max: 0.43Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 27µH
- Rated Current: 440mA
- DCR Max: 0.52Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 33µH
- Rated Current: 400mA
- DCR Max: 0.62Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 39µH
- Rated Current: 370mA
- DCR Max: 0.72Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 47µH
- Rated Current: 340mA
- DCR Max: 0.85Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 56µH
- Rated Current: 310mA
- DCR Max: 1Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 68µH
- Rated Current: 290mA
- DCR Max: 1.2Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 82µH
- Rated Current: 270mA
- DCR Max: 1.4Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 10
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 100µH
- Rated Current: 250mA
- DCR Max: 1.6Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 120µH
- Rated Current: 230mA
- DCR Max: 1.9Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 150µH
- Rated Current: 210mA
- DCR Max: 2.2Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 180µH
- Rated Current: 190mA
- DCR Max: 2.8Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 220µH
- Rated Current: 170mA
- DCR Max: 3.4Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 270µH
- Rated Current: 155mA
- DCR Max: 4.2Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 330µH
- Rated Current: 140mA
- DCR Max: 4.9Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 390µH
- Rated Current: 130mA
- DCR Max: 5.8Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 470µH
- Rated Current: 120mA
- DCR Max: 7Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 560µH
- Rated Current: 110mA
- DCR Max: 8.5Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 680µH
- Rated Current: 100mA
- DCR Max: 10Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 820µH
- Rated Current: 90mA
- DCR Max: 13Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1000µH
- Rated Current: 85mA
- DCR Max: 15Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1200µH
- Rated Current: 75mA
- DCR Max: 17Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1500µH
- Rated Current: 70mA
- DCR Max: 20Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1800µH
- Rated Current: 60mA
- DCR Max: 30Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2200µH
- Rated Current: 55mA
- DCR Max: 35Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2700µH
- Rated Current: 45mA
- DCR Max: 55Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3300µH
- Rated Current: 40mA
- DCR Max: 60Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3900µH
- Rated Current: 38mA
- DCR Max: 70Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 4700µH
- Rated Current: 36mA
- DCR Max: 78Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 5600µH
- Rated Current: 33mA
- DCR Max: 85Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 6800µH
- Rated Current: 30mA
- DCR Max: 110Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 8200µH
- Rated Current: 28mA
- DCR Max: 125Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 10000µH
- Rated Current: 25mA
- DCR Max: 150Ω
- Op Temp Range: -40°C to +125°C
- Q Min: 20
- Length: 0.220/5.588
- Width: 0.197/5.004
- Height: 0.157/3.988
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
