LS10 Series

Features

• 1008 SMD for Auto Insertion
• Low DCR for Low Loss Applications
• Excellent Solderability Characteristics
• Highly resistant to mechanical forces
• Excellent reliabiltiy in temperature and climate change

Electrical

• Inductance range: 1.2µh to 15µh
• Tolerance: 5% across entire range. Also available in 10% and 20%.
• Test Frequency: (L) entire range @ 7.96Mhz @ 200mv (Q) from 1.2µh to 3.3µh @ 50Mhz, from 3.9µh to 15µh @ 7.9Mhz
• Operating Temp Range: -25ºC ~ 85ºC IDC: Inductance drop 10% Typ. from original value with no current
• IDC: Inductance drop 10% Typ. from original value with no current

Resistance to Solder heat

• Pre-Heat: 150ºC, 1 minute
• Solder Temp: 260ºC peak for 10 sec.
• Solder Composition: : Sn/Ag3.0/Cu0.5
• Test Time: 6 minutes.

Test Equipment

• (L/Q): HP4286A/HP4287A/Agilent E4991A
• (DCR): Chen Hwa 502BC
• (SRF): HP8753D/Agilent E4991
• (IDC): HP4284A with HP42841A/HP4285A with HP42841A

Physical

• Packaging: 2000 pieces per 7inch reel.

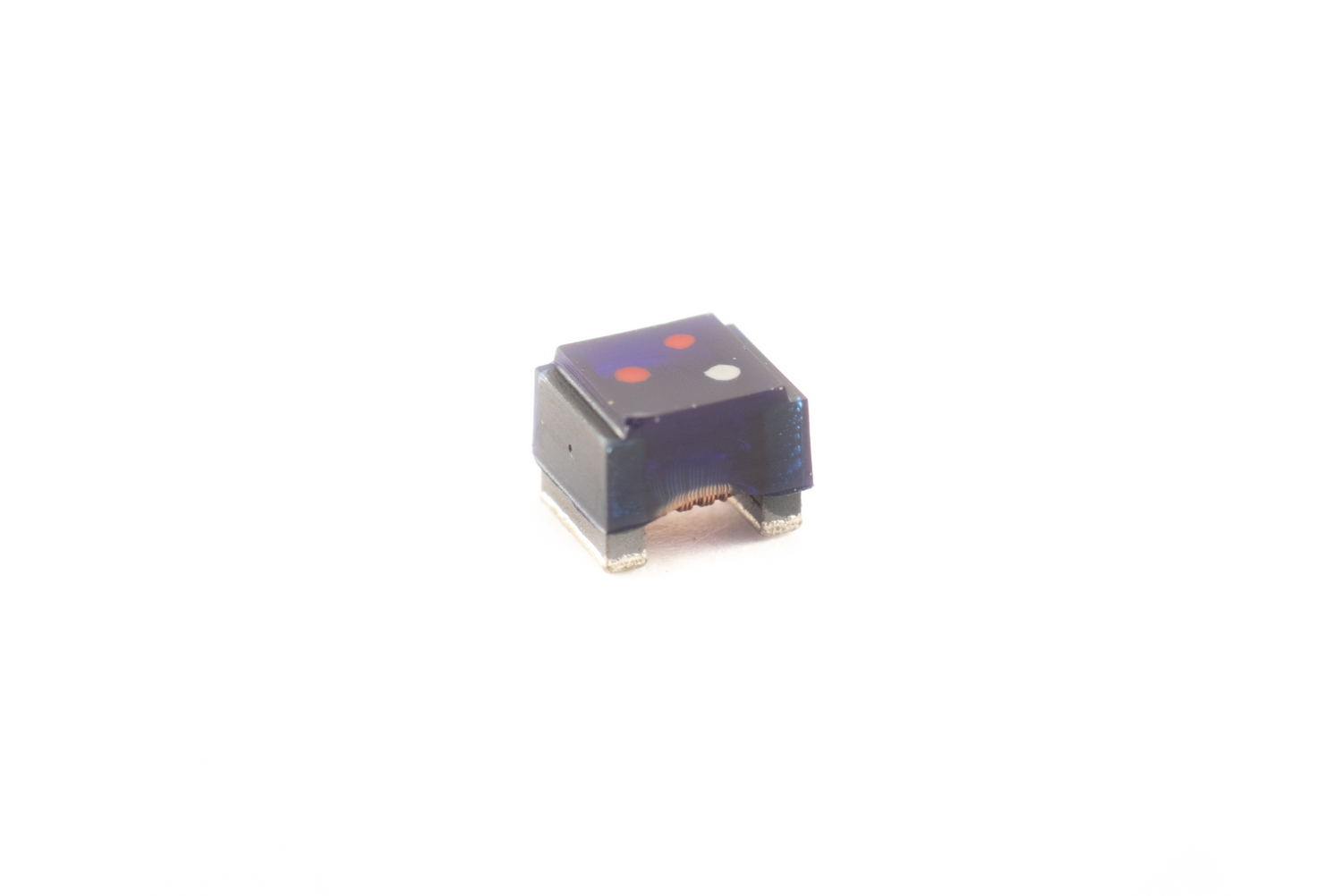

• Marking: 3 Dot Color Code.
