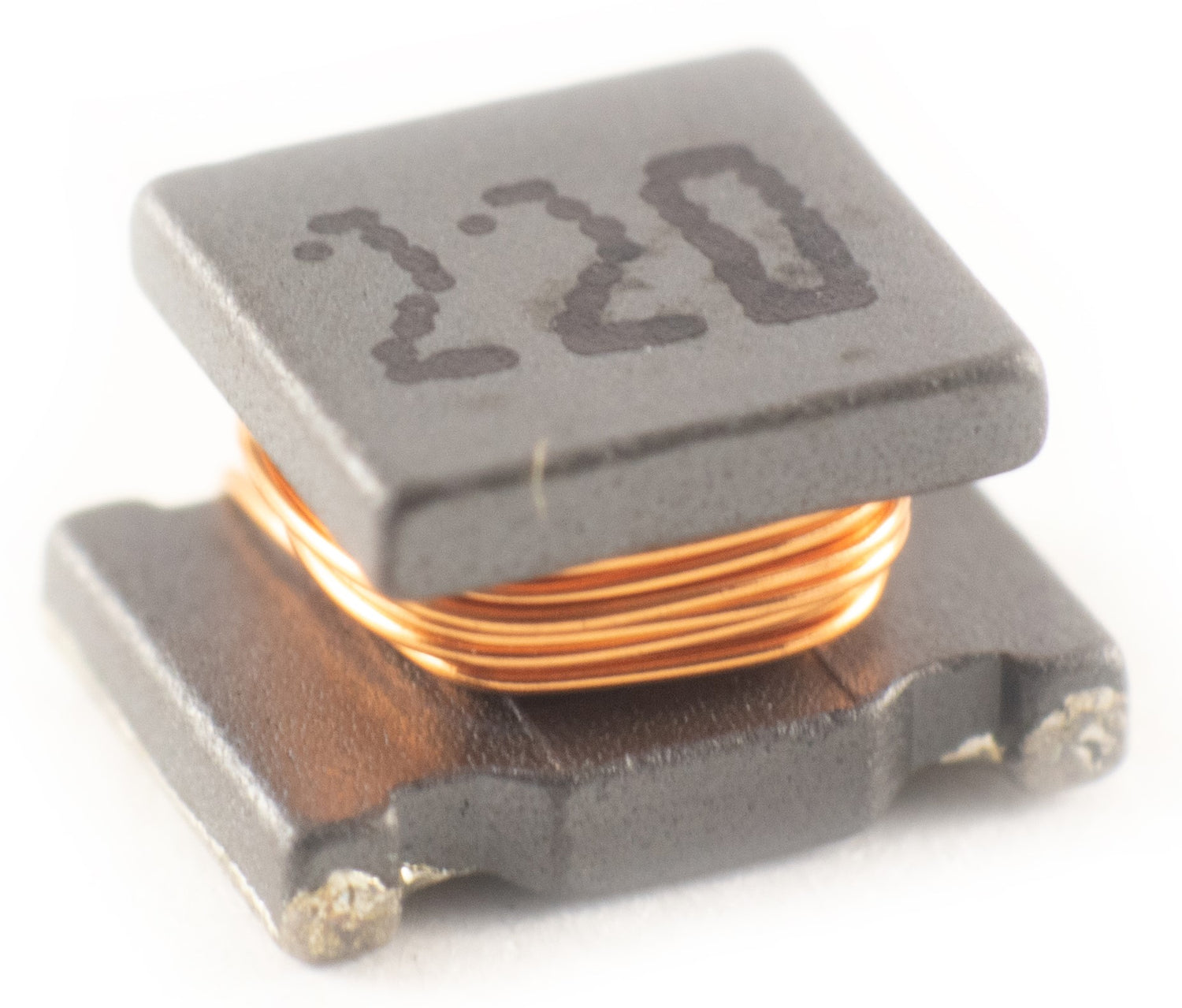

LRC30 Series

$0.00

Features

  • Miniature SMT wire-wound open magnetic path construction inductors with low DCR, high current capacity and high impedance characteristics.
  • Excellent solder heat resistance for flow and reflow soldering methods.
  • Excellent for use as choke coils in DC/DC converter and DC power supply circuits.

Electrical

  • Inductance Range: 1.0µh to 1500µh
  • Tolerance: For 20% use M, 10% use K and 5% use J as part number suffix. Available in tighter tolerances.
  • Test Frequency: Inductance measured at 1MHz for all values. Except 560µh thru 1500µh, which are tested at 1 KHz.
  • Operating Temp: -40°C to +125°C
  • Rated Current:Based on Temperature rise not to exceed 35ºC. Inductance Drop 10% typical..

Resistance to Soldering Heat

  • Pre-Heat: 150°C ± 10°C / 1-2 min.
  • Solder Temp: 260°C ± 5°C for 10 sec. ± 1 sec.

Physical

  • Packaging: 500 pieces per 7 inch reel.
  • 2500 pieces per 13 inch reel.
Part Number

Specifications
  • Inductance: 1µH
  • Rated Current: 1080mA
  • DCR Max: 0.08Ω
  • Op Temp Range: -40°C to +125°C
  • Length: 0.177/4.496
  • Width: 0.126/3.200
  • Height: 0.102/2.591
  • Mounting Type: Surface Mount
  • Shielded: N
    • Download Datasheet
