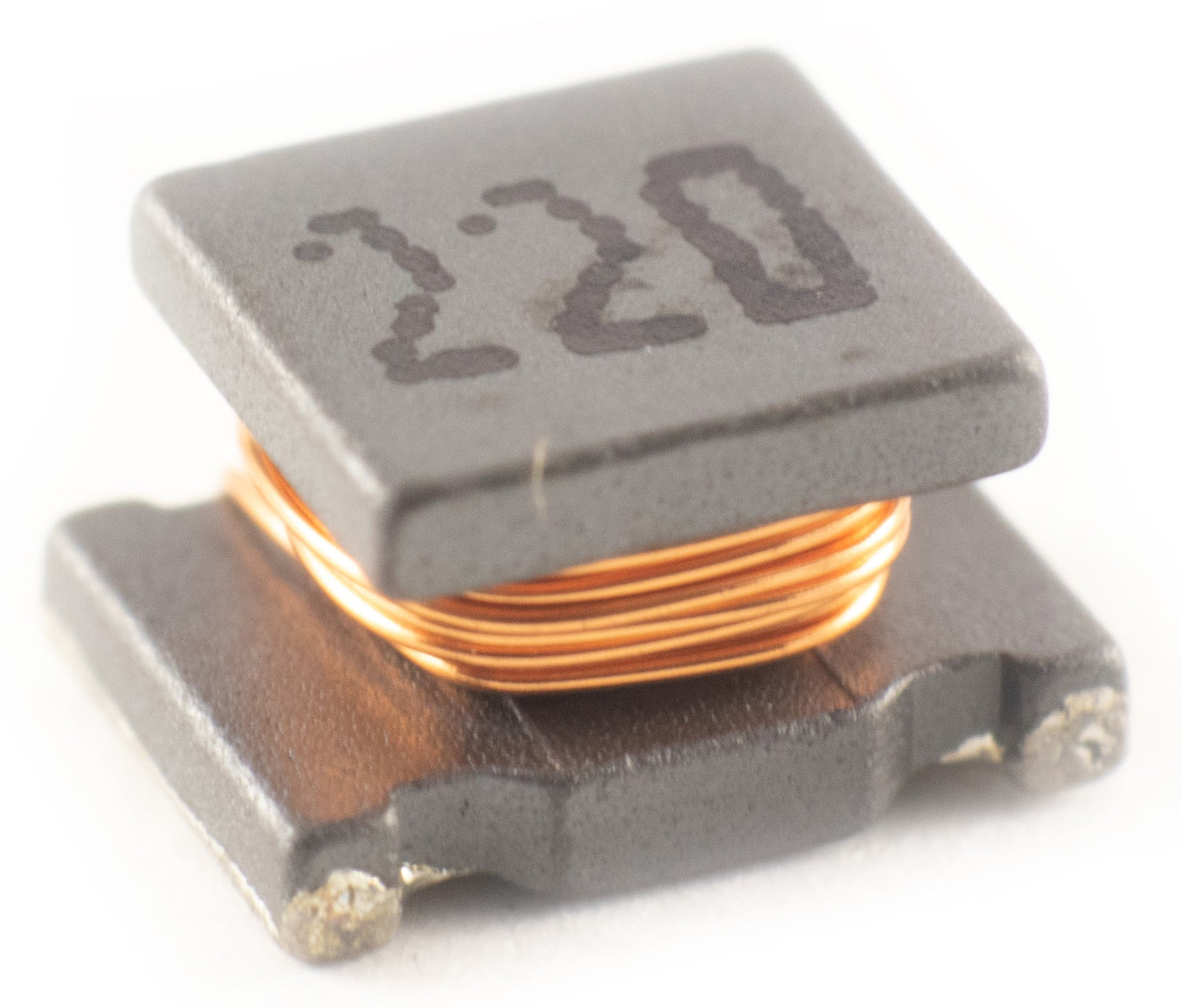

LRC27 Series

$0.00

Features

  • Low DC Resistance
  • Wide Inductance range
  • Expanded Temp Range

Electrical

  • Inductance Range: 2.2µH ~ 100µH
  • Tolerance: 20% over entire range, 10%
    available from 10µH to 100µH
  • Operating Temp. Range: -25ºC to +125ºC including self-temperature rise
  • Rated Current: Inductance drop by 10% from original value at no load.

Test Equipment

  • (L): Agilent HP4192A
  • (DCR): Chroma 16502
  • (SRF): Agilent HP4287A

Physical

  • Packaging: 2000 pieces per 7 inch reel
  • Marking: EIA Inductance Code
Part Number

Specifications
  • Inductance: 2.2µH
  • Rated Current: 790mA
  • DCR Max: 0.097Ω
  • Op Temp Range: -25°C - +125°C
  • Length: .126 / 3.2
  • Width: .098 / 2.5
  • Height: .061 / 1.55
  • Mounting Type: Surface Mount
  • Shielded: N
    • Download Datasheet
