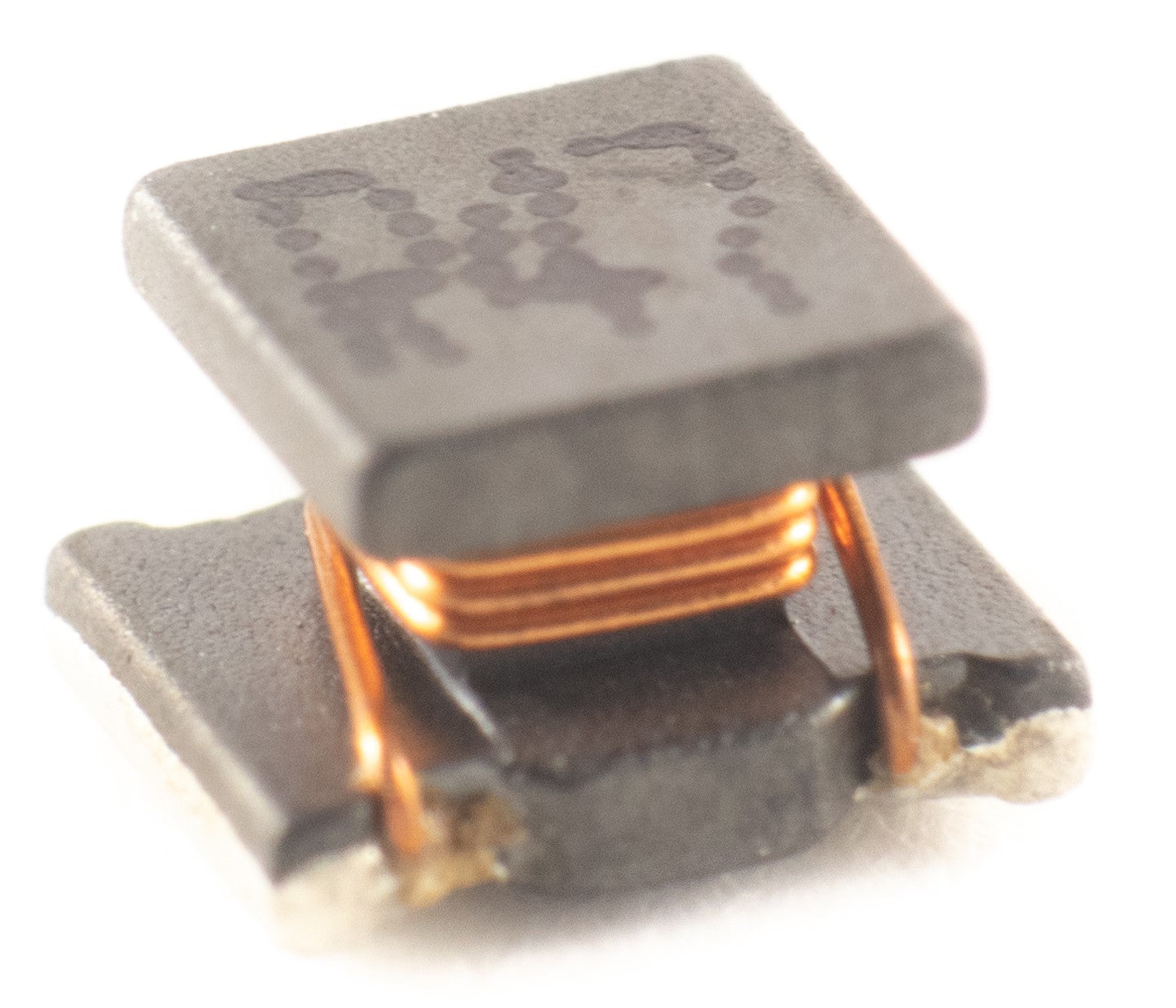

LRC20L Series

Features

• Miniature SMT wire-wound open magnetic path construction inductors with low DCR, high current capacity and High Impedance Characteristics.
• Excellent solder heat resistance for flow and reflow soldering methods.
• Excellent for use as choke coils in DC/DC converter and DC power supply circuits.

Electrical

• Inductance Range: .15µH to 12µH.
• Tolerance: 20% for all values, Values from 10uh and above are also in 10%,please change the “M” in the part number to a “K” for 10%..
• Test Frequency: Inductance measured on an HP4192 at 1MHz
• Operating Temp. Range: -25°C to +125°C.
• Rated Current:Based on Temperature rise not to exceed 35ºC. Inductance Drop 10% typical.
• Resistance to Soldering Heat: Pre heat:150°C ± 10°C / 1-2 min. Solder temp: 260°C ± 5°C for 10 sec. ± 1 sec.

Physical

• Packaging: 2000 pieces per 7 inch reel.
