Allied Components

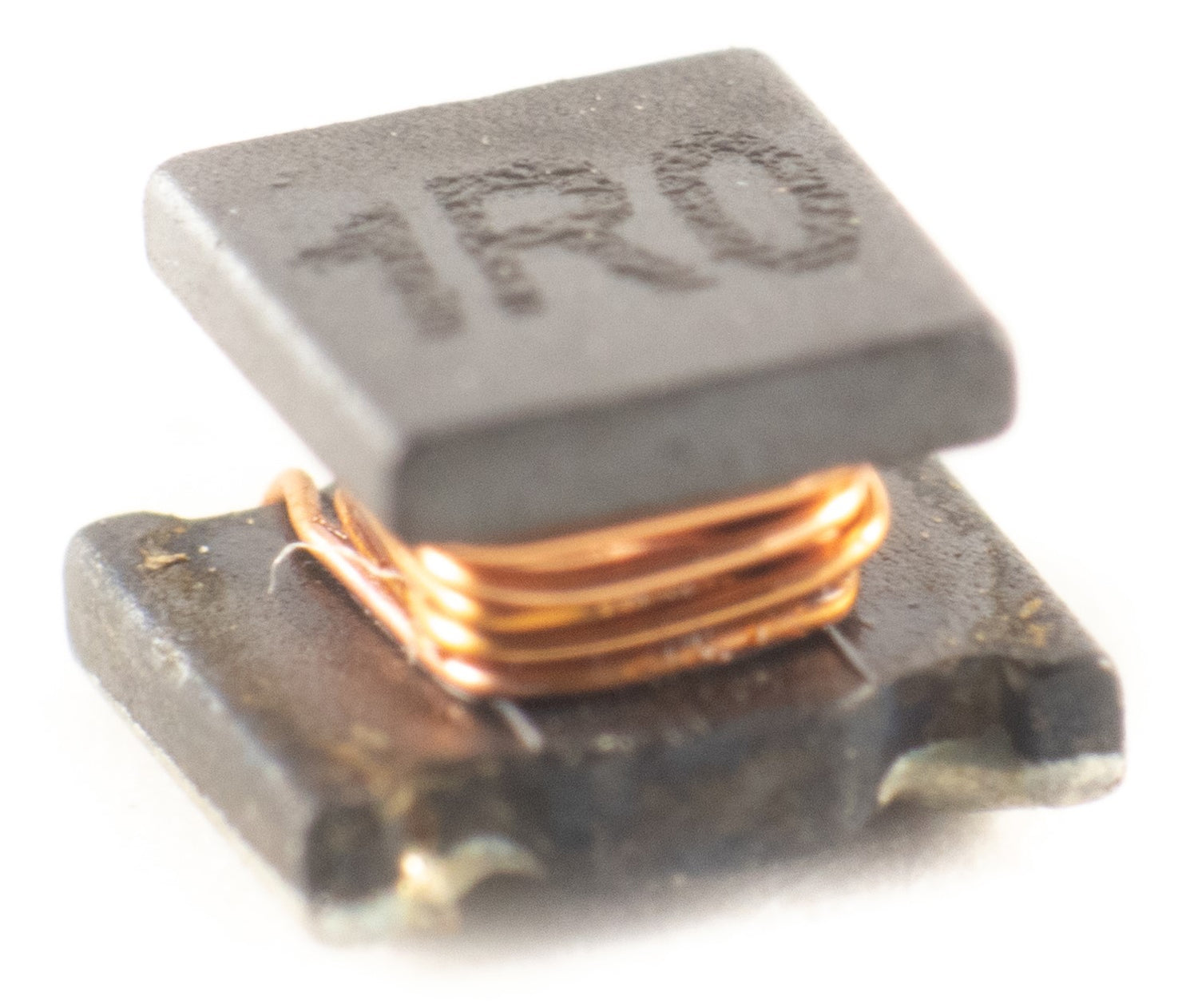

LRC20 Series

$0.00

Features

  • Miniature SMT wire-wound open magnetic path construction inductors with low DCR, high current capacity and High Impedance Characteristics.
  • Excellent solder heat resistance for flow and reflow soldering methods.
  • Excellent for use as choke coils in DC/DC converter and DC power supply circuits.

Electrical

  • Inductance Range: .47µH to 560µH.
  • Tolerance: For 20% use M, 10% use K and 5% use J as part number suffix.
  • Test Frequency: Inductance measured on an HP4192 at 1MHz for all values except 470µh and 560µh. Which are tested at 1KHz.
  • Operating Temp. Range: -25°C to +125°C.
  • Rated Current:Based on Temperature rise not to exceed 35ºC. Inductance Drop 10% typical.
  • Resistance to Soldering Heat: Pre heat:150°C ± 10°C / 1-2 min. Solder temp: 260°C ± 5°C for 10 sec. ± 1 sec.

Physical

  • Packaging: 2000 pieces per 7 inch reel.
Part Number

Specifications
  • Inductance: 0.47µH
  • Rated Current: 1100mA
  • DCR Max: 0.0546Ω
  • Op Temp Range: -25°C to +125°C
  • Length: 0.126/3.200
  • Width: 0.098/2.489
  • Height: 0.079/2.007
  • Mounting Type: Surface Mount
  • Shielded: N
    • Download Datasheet
