Allied Components

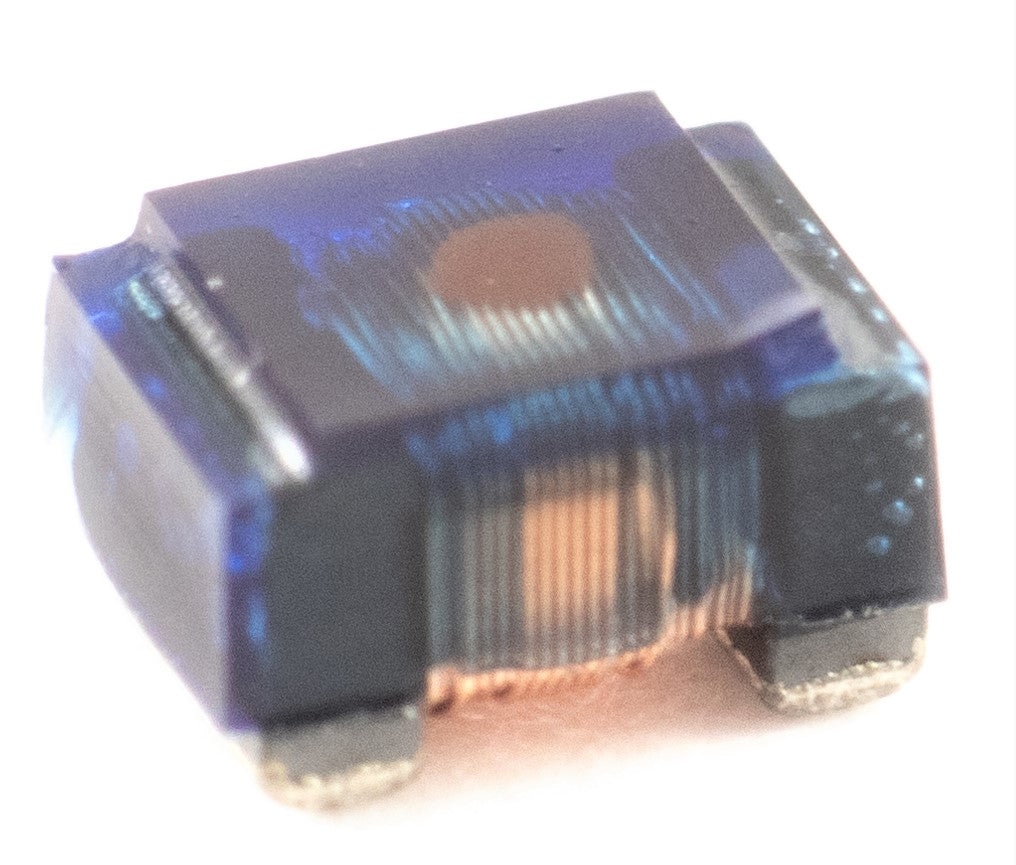

LD05 Series

$0.00

Features

  • Miniture SMD 0805 wire wound
  • Wide inductance range
  • Low DC resistance

Electrical

  • Inductance Range: 1µh ~ 100µh
  • Tolerance: 20% over entire range also available in tighter tolerances
  • Operating Temp: -25°C ~ +85°C
  • IDC: Inductance drop 10% from its value without current..
  • L/Q: Test OSC @ 200mV

Resistance to Soldering Heat

  • Pre-Heat 150°C, 1 minute.
  • Solder Composition: Sn/Ag3.0/Cu0.5
  • Solder Temp: 260°C ± 5°C for 10 sec.

Test Equipment

  • (L/Q): HP4286A/HP4287A/Agilent E4991A
  • (RDC): Chen Hwa 502BC
  • (IDC): HP4284A + HP42841A / HP4285A + HP42841A
  • (SRF): HP8753D / Agilent E4991

Physical

  • Packaging: 2000 pieces per 7 inch reel.
  • Marking: None
Part Number

Specifications
  • Inductance: 1µH
  • Rated Current: 800mA
  • DCR Max: 0.1Ω
  • Op Temp Range: -25°C to +85°C
  • Length: 0.094/2.388
  • Width: 0.068/1.727
  • Height: 0.060/1.524
  • Mounting Type: Surface Mount
  • Shielded: N
