Allied Components

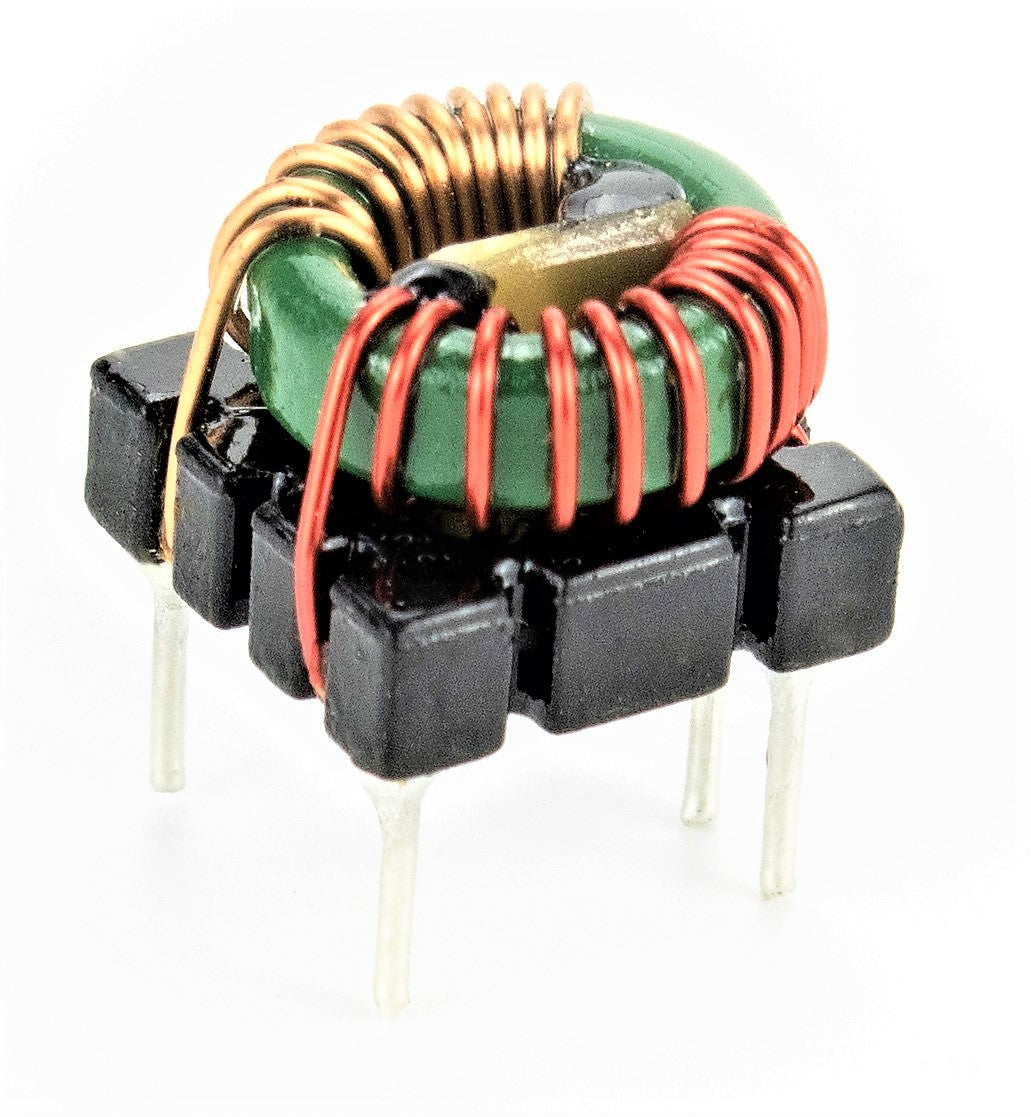

HCMB1111-200

$0.00
  • Solid base for stable mounting
  • Fixed pins for easy PCB insertion
  • Max Operating Temperature: +110°C
  • Wave solder condition: Max temperature 260°C ±3°C / 5-6 sec
Part Number

Specifications
  • Rated Current: 500mA
  • DCR Max: 65mΩ
  • Op Temp Range: +110°C Max
  • Length: .413 / 10.5
  • Width: .413 / 10.5
  • Height: .551 / 14.0
  • Inductance: 20µH
  • Mounting Type: Through-Hole
  • Function: Common Mode Choke
    • Download Datasheet
