Allied Components

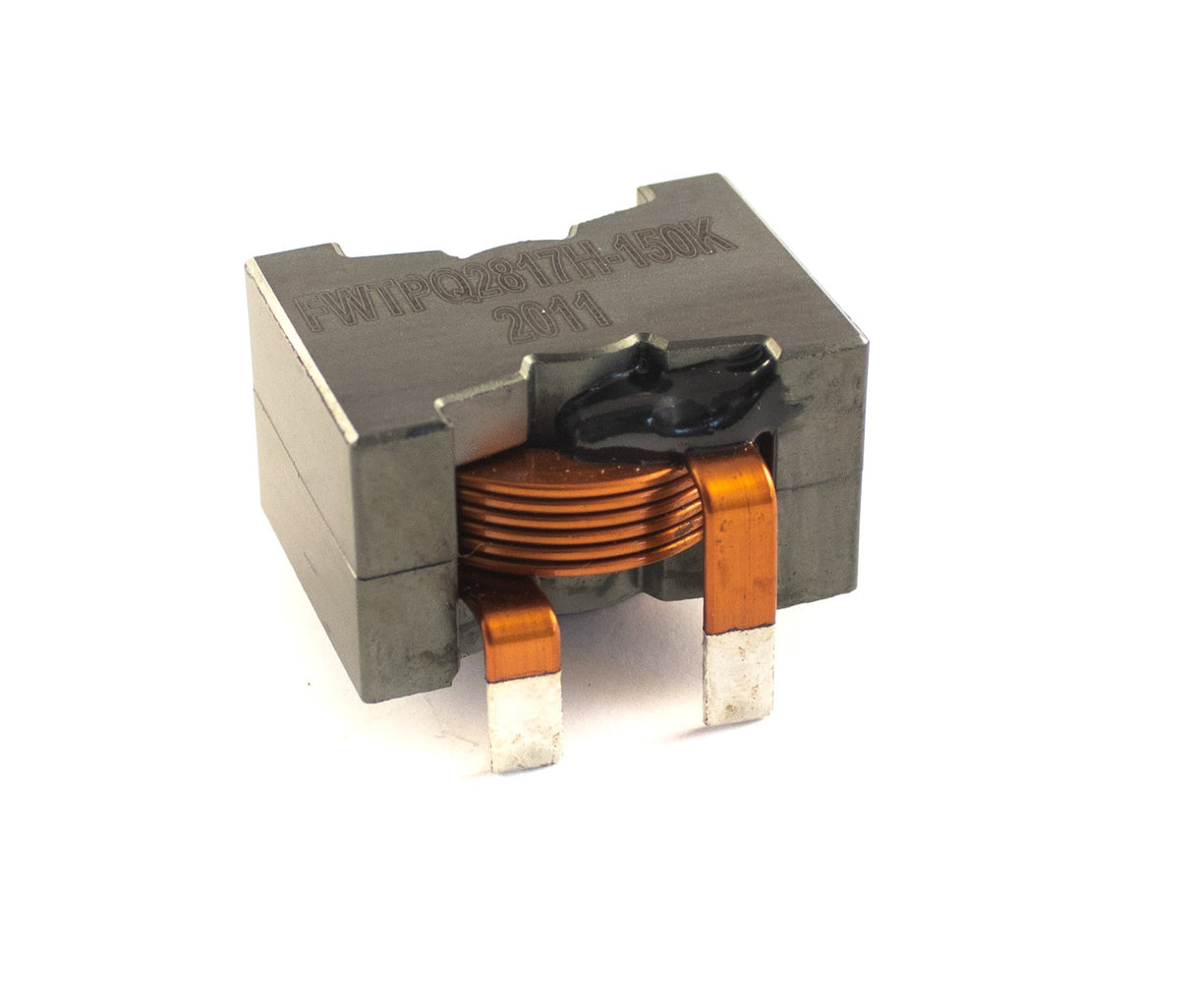

FWTPQ2817H Series

$0.00

Features

  • Flat Wire Through Hole Power Choke.
  • Low Magnetic Loss
  • Low DCR
  • High Saturation Current

Electrical

  • Inductance Range: 3.3µH to 33µH
  • Tolerance: ±10%
  • Test Frequency: 500KHz, 0.1V
  • Operating Temp: -40ºC to +85 ºC
  • Isat: Current at which the inductance will drop by 10%, 20%, and 30% from its original inductance without current.
  • Irms: The actual value of DC current when the temperature rise is ΔT 20°C and ΔT 40°C.

Physical

  • Packaging: 35 per Tray, 560pcs per Carton
Part Number

Specifications
  • Inductance: 3.3µH
  • Rated Current: 93.6A
  • DCR Max: 2.82mΩ
  • Op Temp Range: -40°C to +85°C
  • Length: 1.102 / 28.0
  • Width: 1.102 / 28.0
  • Mounting Type: Through-Hole
  • Shielded: Y
  • Height: .669 / 17.0
    • Download Datasheet
