Allied Components | SKU:

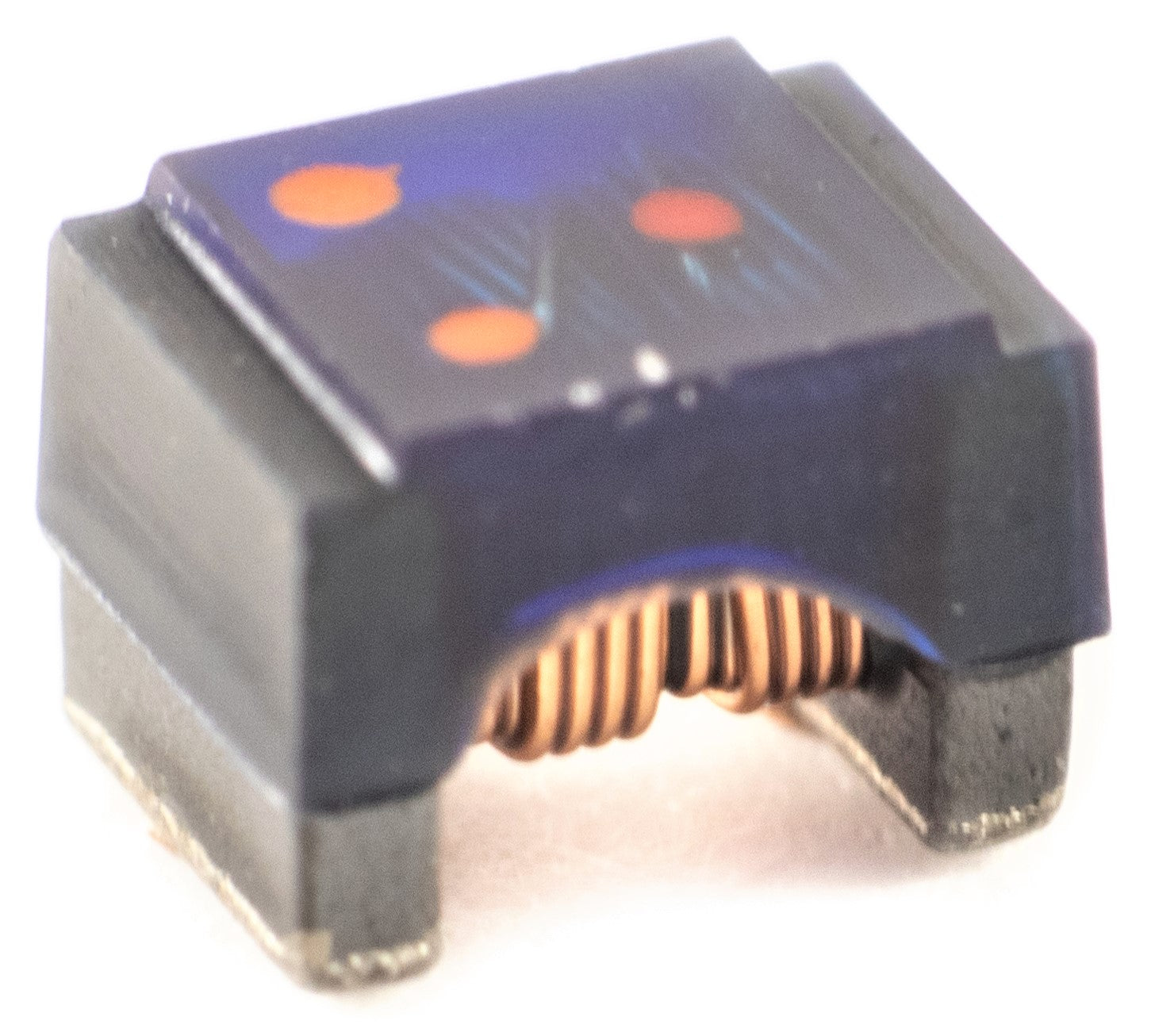

FCHC20 Series
Regular price
$0.00
Unit price
/
Unavailable
Features
- Designed for higher current applications
- Accurate and consistent dimensions for auto insertion
- Excellent Solderability Characteristics
- Highly resistant to mechanical force
- Excellent reliability in temperature and climate change
Electrical
- Inductance range: .47µh to 680µh
- Tolerance: 10% Across entire range, also available in 5%
- Test Frequency: (L/Q) as specified
- Operating Temp: -25ºC ~ 105ºC
- IDC: Inductance drop 10% typical from original value with no current.
Resistance to Soldering heat
- Test Method: Reflow solder the device onto PCB
- Peak Temp: 260ºC ± 5ºC for 10 sec.
- Solder Composition: : Sn/Ag3.0/Cu0.5
- Test Time: 6 minutes.
Test Equipment
- (L/Q): HP4191A over 1MHz / HP4285A under 1 MHz
- (DCR): Chen Hwa 502BC
- (SRF): HP4291A / HP8753D RF Impedance Analyzer
- (IDC): HP4284A with HP42841A
Physical
- Packaging: 2000 pieces per 7inch reel.
- Marking: Three Dot Color Code System
FCHC20 Series - FCHC20-R47K-RC is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Specifications
Specifications
- Inductance: 0.47µH
- Rated Current: 1800mA
- DCR Max: 0.07Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 40
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1µH
- Rated Current: 1500mA
- DCR Max: 0.08Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.2µH
- Rated Current: 1400mA
- DCR Max: 0.12Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.5µH
- Rated Current: 1125mA
- DCR Max: 0.13Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 1.8µH
- Rated Current: 970mA
- DCR Max: 0.13Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2.2µH
- Rated Current: 970mA
- DCR Max: 0.13Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 2.7µH
- Rated Current: 900mA
- DCR Max: 0.15Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 3.3µH
- Rated Current: 837mA
- DCR Max: 0.16Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 4.7µH
- Rated Current: 675mA
- DCR Max: 0.23Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 5.6µH
- Rated Current: 620mA
- DCR Max: 0.26Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 6.8µH
- Rated Current: 600mA
- DCR Max: 0.27Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 8.2µH
- Rated Current: 580mA
- DCR Max: 0.32Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 20
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 10µH
- Rated Current: 520mA
- DCR Max: 0.36Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 15µH
- Rated Current: 480mA
- DCR Max: 0.56Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 18µH
- Rated Current: 330mA
- DCR Max: 0.67Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 22µH
- Rated Current: 310mA
- DCR Max: 0.77Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 27µH
- Rated Current: 280mA
- DCR Max: 1Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 33µH
- Rated Current: 270mA
- DCR Max: 1.1Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 39µH
- Rated Current: 220mA
- DCR Max: 1.4Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 47µH
- Rated Current: 210mA
- DCR Max: 1.64Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 56µH
- Rated Current: 189mA
- DCR Max: 2.49Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 68µH
- Rated Current: 189mA
- DCR Max: 2.8Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 82µH
- Rated Current: 145mA
- DCR Max: 3Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 100µH
- Rated Current: 145mA
- DCR Max: 3.7Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 150µH
- Rated Current: 120mA
- DCR Max: 6.1Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 180µH
- Rated Current: 105mA
- DCR Max: 8Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 220µH
- Rated Current: 100mA
- DCR Max: 8.4Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 330µH
- Rated Current: 80mA
- DCR Max: 12.3Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 390µH
- Rated Current: 75mA
- DCR Max: 17.6Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 470µH
- Rated Current: 75mA
- DCR Max: 22Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 560µH
- Rated Current: 65mA
- DCR Max: 23Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
- Inductance: 680µH
- Rated Current: 65mA
- DCR Max: 28Ω
- Op Temp Range: -25ºC to 105ºC
- Q Min: 15
- Length: 0.146/3.708
- Width: 0.114/2.896
- Height: 0.083/2.108
- Mounting Type: Surface Mount
- Shielded: N Download Datasheet
