Allied Components

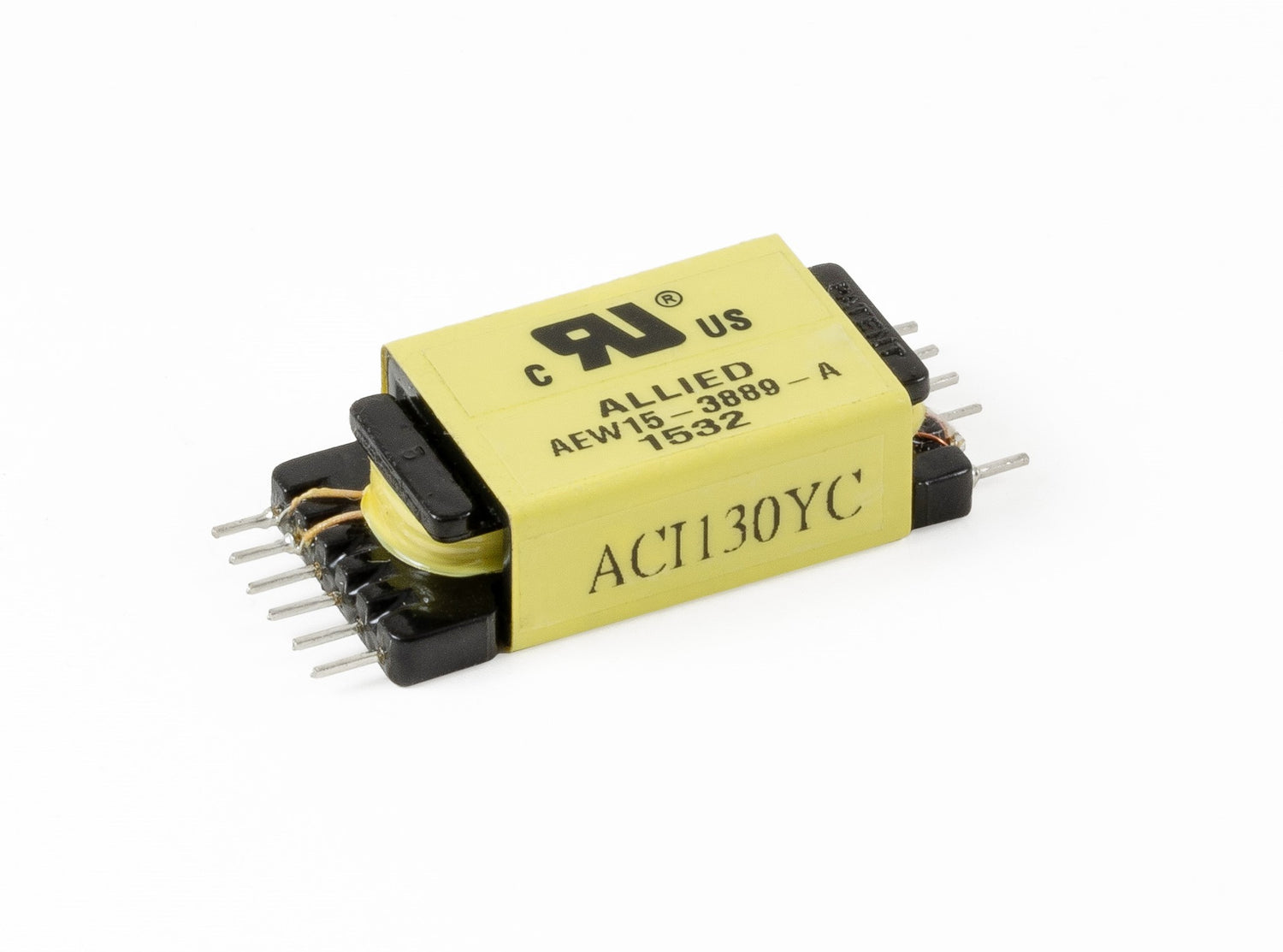

EW15 Recess Mount / AEW15-3889-A

$0.00
  • EW15 Core Design
  • 12 Pin SMD Recess, Low Profile
  • Flyback Topology for LED Application
  • 20 Watt Power Rating
  • UL Class B 130 Insulation System UL File E349541
Part Number

Specifications
  • Pins: 12
  • Op Temp Range: -40°C to +85°C
  • Length: 1.559 / 39.600
  • Width: 0.748 / 19.000
  • Height: 0.433 / 11.000
  • Primary Inductance: 600uh
  • Turns Ratio: 1 : 0.16 : 0.4
  • Geometry: EW15
  • Mounting Type: SMD Recess
    • Download Datasheet
