Allied Components

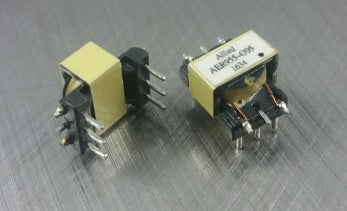

ER 9.5 Design Through Hole / AER955-4395

$0.00
  • ER9.5/5 Core Design
  • 6 Pin Through Hole, Horizontal Mount
  • Operating Temperature Range: -40°C to +85°C
Part Number

Specifications
  • Pins: 6
  • Op Temp Range: -40°C to +85°C
  • Length: 0.669 / 17.000
  • Width: 0.394 / 10.000
  • Height: 0.276 / 7.000
  • Primary Inductance: 225µH
  • Turns Ratio: 1 : 1.22
  • Geometry: ER9.5/5
  • Mounting Type: Through-Hole
    • Download Datasheet
