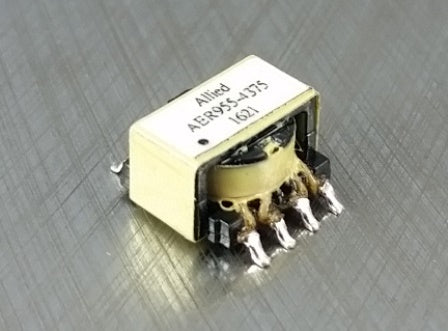

ER 9.5 Design SMD / AER955-4375

$0.00
  • ER9.5/5 Core Design
  • 8 Pin Surface Mount, Horizontal Mount
  • Operating Temperature Range: -40°C to +85°C
  • Reflow Condition: Maximum reflow temperature is 250°C/-5°C for
    20-40 seconds (Refer to IPC/JEDEC J-STD-02C Standard)
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +85°C
  • Length: 0.475 / 12.070
  • Width: 0.394 / 10.000
  • Height: 0.235 / 5.970
  • Primary Inductance: 17.8µH
  • Turns Ratio: 1 : 1 : 2.2 : 2.2
  • Geometry: ER9.5/5
  • Mounting Type: Surface Mount
    • Download Datasheet
