Allied Components

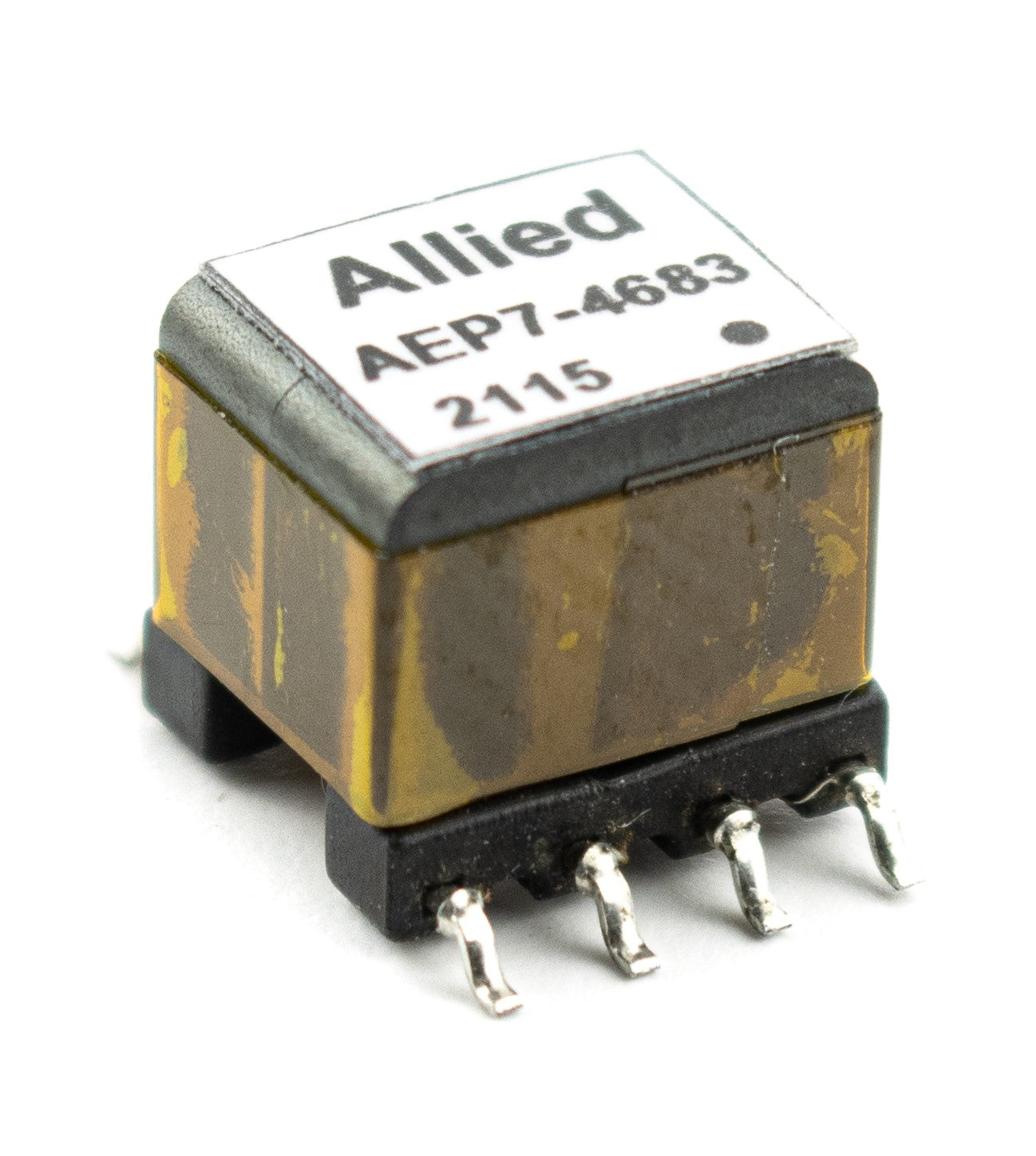

EP7 Design / AEP7-4683

$0.00
  • EP7 SMD Package
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC,
    time is 30s (Refer to IPC/JEDEC J-STD-020C Standard
  • Operating Temperature Range: -40ºC to +125ºC
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +125°C
  • Length: .512 / 13.0
  • Width: .394 / 10.0
  • Height: .362 / 9.2
  • Primary Inductance: 310µH
  • Turns Ratio: 1 : 0.7 : 0.19
  • Geometry: EP7
  • Mounting Type: Surface Mount
    • Download Datasheet
