Allied Components

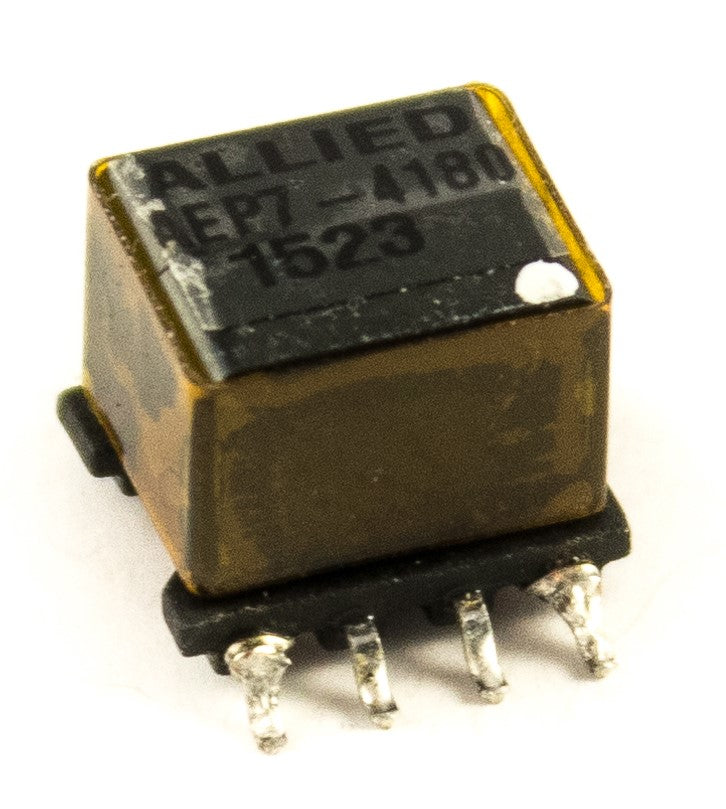

EP7 Design / AEP7-4180

$0.00
  • EP7 Core Design
  • 8 Pin Surface Mount Device
  • Power Transformer.
  • Operating Temperature: -40°C to +125°C
  • Reflow Condition: Maximum reflow temperature is 250ºC/-5ºC time is 20~40 sec.
    (Refer to IPC/JEDECJ-STD-020 standard)
Part Number

Specifications
  • Pins: 8
  • Op Temp Range: -40°C to +125°C
  • Length: 0.512 / 13.0
  • Width: 0.394 / 10.0
  • Height: 0.362 / 9.2
  • Primary Inductance: 8.0µh
  • Turns Ratio: 1 : 3
  • Geometry: EP7
  • Mounting Type: Surface Mount
    • Download Datasheet
